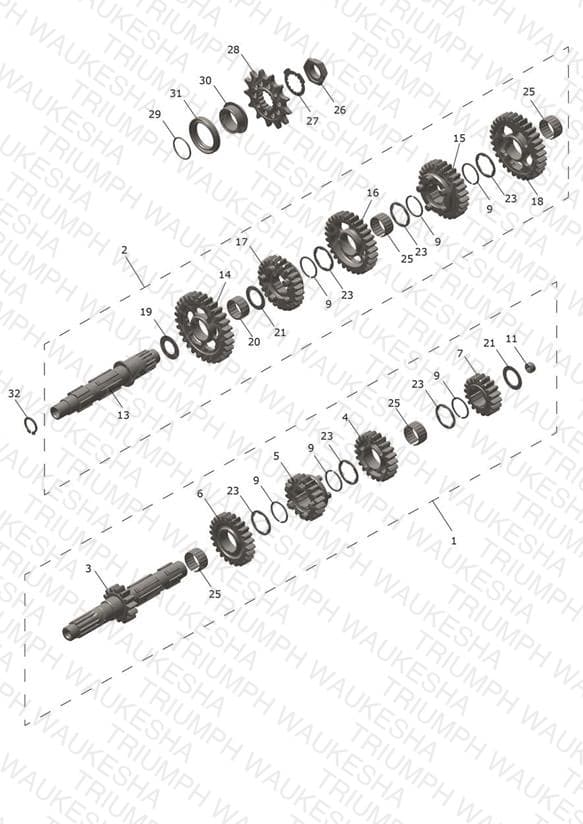

Transmission
Parts (28)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1180445 Input Shaft Assembly, 5 Speed | Input Shaft Assembly, 5 Speed | 1 | $469.86 | Available to order | 1 |
| 2 | T1180446 Output Shaft Assembly, 5 Speed | Output Shaft Assembly, 5 Speed | 1 | $577.27 | Available to order | 1 |
| 3 | T1180448 Input Shaft | Input Shaft | 1 | $186.47 | Available to order | 1 |
| 4 | T1180466 Gear, 4th, Input | Gear, 4th, Input | 1 | $97.67 | Available to order | 1 |
| 5 | T1180465 Gear, 3rd, Input | Gear, 3rd, Input | 1 | $97.67 | Available to order | 1 |
| 6 | T1180467 Gear, 5th, Input | Gear, 5th, Input | 1 | $97.67 | Available to order | 1 |
| 7 | T1180449 Gear, 2nd, Input | Gear, 2nd, Input | 1 | $97.67 | Available to order | 1 |
| 9 | T3500189 Circlip, Snap, 20.7 x 24.2 x 1.2 | Circlip, Snap, 20.7 x 24.2 x 1.2 | 6 | $5.32 | Available to order | 6 |
| 11 | T1180464 Bush, Input Shaft, 6.25 x 12 x 6 | Bush, Input Shaft, 6.25 x 12 x 6 | 1 | $61.48 | Available to order | 1 |
| 13 | T1180468 Output Shaft | Output Shaft | 1 | $186.47 | Available to order | 1 |
| 14 | T1180469 Gear, 1st, Output | Gear, 1st, Output | 1 | $79.92 | Available to order | 1 |
| 15 | T1180473 Gear, 4th, Output | Gear, 4th, Output | 1 | $79.92 | Available to order | 1 |
| 16 | T1180472 Gear, 3rd, Output | Gear, 3rd, Output | 1 | $79.92 | Available to order | 1 |
| 17 | T1180474 Gear, 5th, Output | Gear, 5th, Output | 1 | $79.92 | Available to order | 1 |
| 18 | T1180471 Gear, 2nd, Output | Gear, 2nd, Output | 1 | $79.92 | Available to order | 1 |
| 19 | T3550378 Washer, 17.2 x 30 x 1 | Washer, 17.2 x 30 x 1 | 1 | $5.99 | Available to order | 1 |
| 20 | T3800285 Bearing, Needle, Cage, 20 x 24 x 10 | Bearing, Needle, Cage, 20 x 24 x 10 | 1 | $44.40 | Available to order | 1 |
| 21 | T3550376 Washer, 20.2 x 30 x 1 | Washer, 20.2 x 30 x 1 | 2 | $5.99 | Available to order | 2 |
| 23 | T3550377 Washer, Splined, 24.2 x 31 x 1.5 | Washer, Splined, 24.2 x 31 x 1.5 | 6 | $18.88 | Available to order | 6 |
| 25 | T3800282 Bearing, Needle Cage, 22 x 26 x 13 | Bearing, Needle Cage, 22 x 26 x 13 | 4 | $50.01 | Available to order | 4 |
| 26 | T3350172 Nut, M18 x 1.25 x 10 | Nut, M18 x 1.25 x 10 | 1 | $6.65 | Available to order | 1 |
| 27 | T3550388 Washer, Tabbed, 22.5 x 38 x 1 | Washer, Tabbed, 22.5 x 38 x 1 | 1 | $6.23 | Available to order | 1 |
| 28 | T1180438 Sprocket, Front, 13T | Sprocket, Front, 13T | 1 | $25.87 | Available to order | 1 |
| 29 | T3600288 O Ring, 25 x 1.78 | O Ring, 25 x 1.78 | 1 | $0.89 | Available to order | 1 |
| 30 | T1180584 Spacer, Sprocket, Output Shaft | Spacer, Sprocket, Output Shaft | 1 | $13.33 | Available to order | 1 |
| 31 | T3600289 Seal, Metal Cased, 32 x 45 x 7 | Seal, Metal Cased, 32 x 45 x 7 | 1 | $17.77 | Available to order | 1 |
| 32 | T3500098 Circlip, DIN471, 15.7 x 19.9 x 1.5 | Circlip, DIN471, 15.7 x 19.9 x 1.5 | 1 | $1.78 | Available to order | 1 |
| 33 | T1180522 Input Shaft Assembly | Input Shaft Assembly Kit contains items 3 & 11 | 1 | $465.65 | Available to order | 1 |
