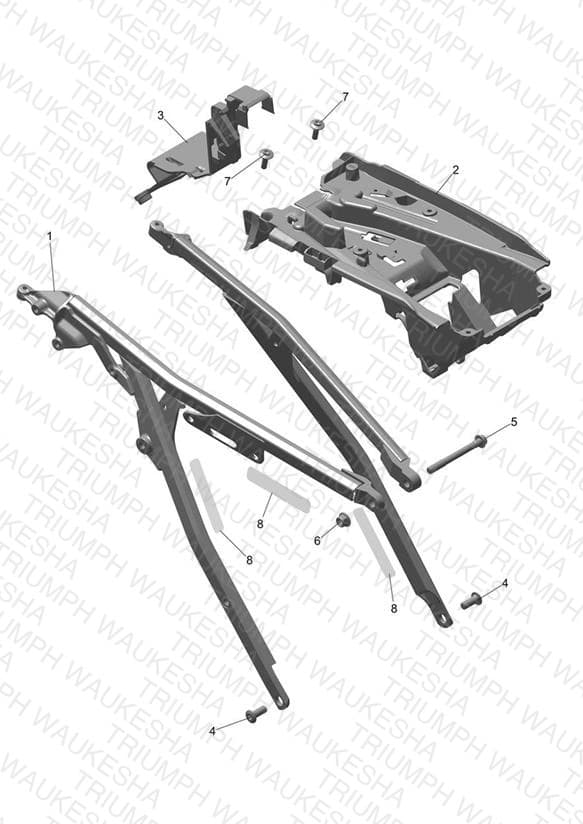

Rear Subframe
Parts (8)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2074963 Rear Subframe Assembly | Rear Subframe Assembly Includes Items 10 | 1 | $465.65 | Available to order | 1 |
| 2 | T2313387 Battery Tray, Mldg | Battery Tray, Mldg | 1 | $35.52 | Available to order | 1 |
| 3 | T2313388 Battery Strap | Battery Strap | 1 | $10.78 | Available to order | 1 |
| 4 | T3200218 Bolt, M8 x 20, Slv, Enc | Bolt, M8 x 20, Slv, Enc | 2 | $1.72 | Available to order | 2 |
| 5 | T3200810 Bolt, TX, M8 x 1.25 x 77, Shld, Slv | Bolt, TX, M8 x 1.25 x 77, Shld, Slv | 1 | $5.11 | Available to order | 1 |
| 6 | T3350004 Locknut, Flanged, M8 x 1.25 | Locknut, Flanged, M8 x 1.25 | 1 | $2.45 | Available to order | 1 |
| 7 | T3330446 Bolt, Lge, M6 x 1 x 20, Slv | Bolt, Lge, M6 x 1 x 20, Slv | 2 | $1.78 | Available to order | 2 |
| 8 | T2076901 Protective Film, 82 x 20 | Protective Film, 82 x 20 | 3 | $1.36 | Available to order | 3 |
