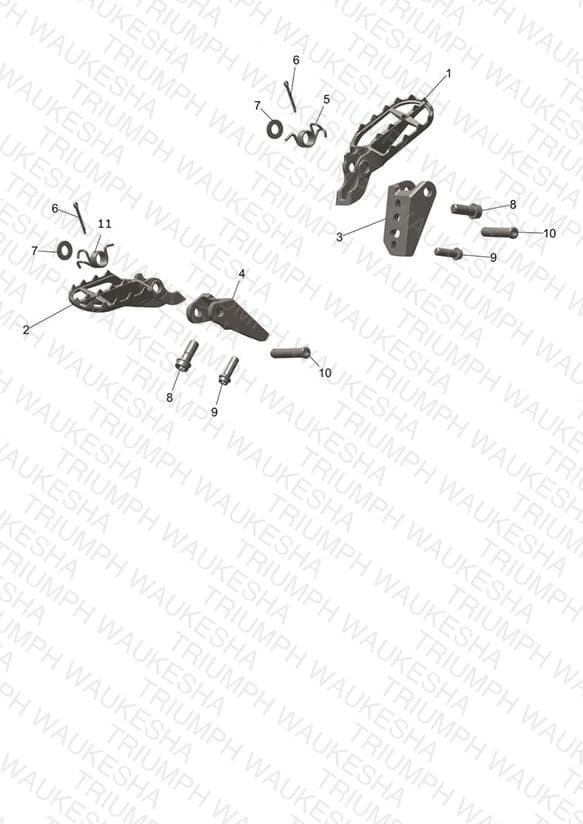

Foot Controls
Parts (10)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2083238 Footrest, Cast, LHS | Footrest, Cast, LHS | 1 | $51.73 | Available to order | 1 |
| 2 | T2083239 Footrest, Cast, RHS | Footrest, Cast, RHS | 1 | $51.73 | Available to order | 1 |
| 4 | T2084039 Clevis, Footrest, RH, EN | Clevis, Footrest, RH, EN | 1 | $64.66 | Available to order | 1 |
| 5 | T2086041 Spring, Torsion, LH | Spring, Torsion, LH | 1 | $2.67 | Available to order | 1 |
| 6 | T3000113 Pin, Split, 25 x 2.8 | Pin, Split, 25 x 2.8 | 2 | $1.78 | Available to order | 2 |
| 7 | T3555041 Washer, 10.25 x 19.5 x 2 | Washer, 10.25 x 19.5 x 2 | 2 | $2.83 | Available to order | 2 |
| 8 | T3201105 Bolt, TX, M10 x 25, Enc | Bolt, TX, M10 x 25, Enc | 2 | $2.67 | Available to order | 2 |
| 9 | T3200882 Bolt, TX, Lghtd, M8 x 25, Enc | Bolt, TX, Lghtd, M8 x 25, Enc | 2 | $2.67 | Available to order | 2 |
| 10 | T3000112 Pin, Clevis, Dia 10 x 50 | Pin, Clevis, Dia 10 x 50 | 2 | $13.33 | Available to order | 2 |
| 11 | T2086048 Spring, Torsion, RH | Spring, Torsion, RH | 1 | $1.53 | Available to order | 1 |
