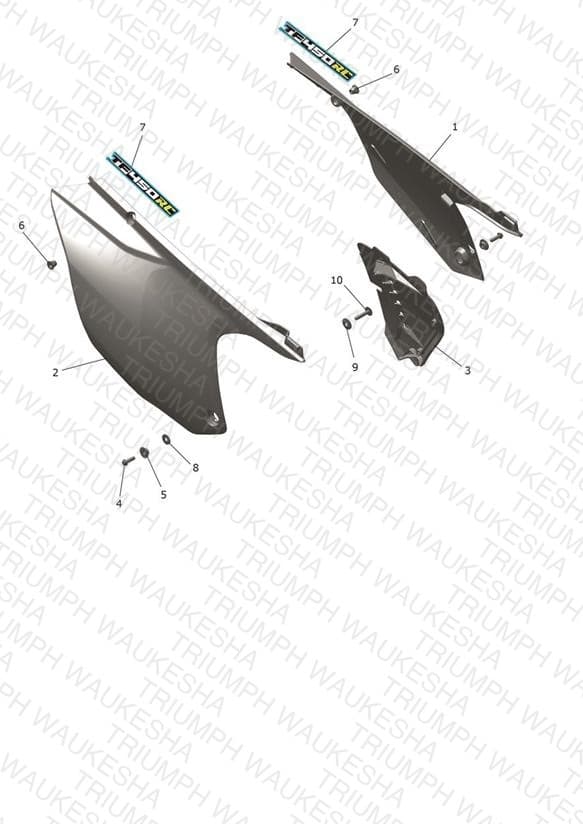

Rear Bodywork
Parts (10)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2313681 Cover, Airbox, LH, Mldg | Cover, Airbox, LH, Mldg | 1 | $35.52 | Available to order | 1 |
| 2 | T2313683 Cover, Airbox, RH, Mldg | Cover, Airbox, RH, Mldg | 1 | $35.52 | Available to order | 1 |
| 3 | T2314449 Vented Panel, Air Filter | Vented Panel, Air Filter | 1 | $24.64 | Available to order | 1 |
| 4 | T3330446 Bolt, Lge, M6 x 1 x 20, Slv | Bolt, Lge, M6 x 1 x 20, Slv | 1 | $1.90 | Available to order | 1 |
| 5 | T3750036 Insert, Press-In, Sltd, 13 x 15.5 x 6 | Insert, Press-In, Sltd, 13 x 15.5 x 6 | 1 | $18.69 | Available to order | 1 |
| 6 | T3350503 Insert, Press In | Insert, Press In | 2 | $5.53 | Available to order | 2 |
| 7 | T2313636 Decal, Model, TF450RC | Decal, Model, TF450RC | 2 | $28.75 | Available to order | 2 |
| 8 | T3555026 Washer, 6.4 x 18 x 1.6 | Washer, 6.4 x 18 x 1.6 | 1 | $1.29 | Available to order | 1 |
| 9 | T3750042 Insert, Press-In, 8 x 13 x 3.7 | Insert, Press-In, 8 x 13 x 3.7 | 1 | $11.07 | Available to order | 1 |
| 10 | T3330451 Bolt, Lge, TX, M6 x 30, Slv | Bolt, Lge, TX, M6 x 30, Slv | 1 | $1.90 | Available to order | 1 |
