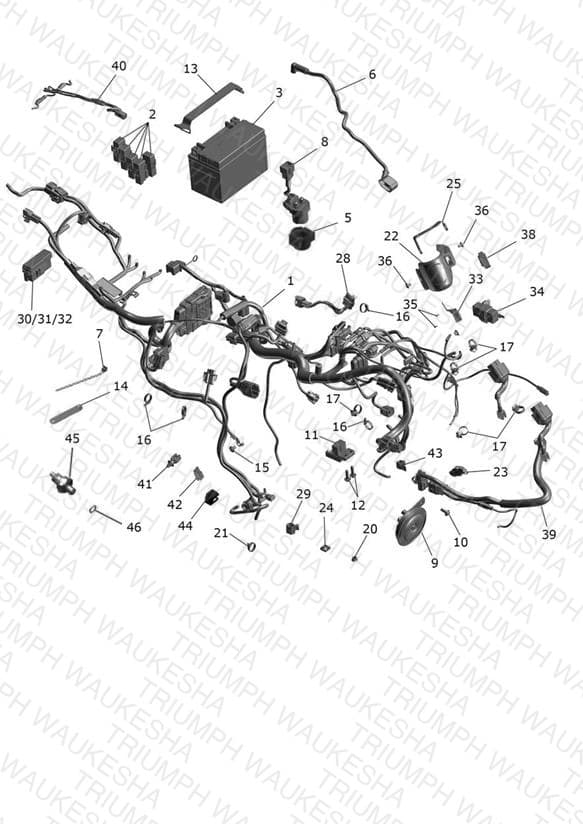

Harness
Parts (43)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | TA402281 Wiring Harness | Wiring Harness | 1 | $675.08 | Out of Stock | Notify Me |
| 2 | JL403000 Relay, Interlock | Relay, Interlock | 5 | $12.84 | Available to order | 5 |
| 3 | T2500183 Battery | Battery All Except BR, JP, EF & GR | 1 | $125.34 | Available to order | 1 |
| 3 | T2504606 Spares Kit, Battery | Spares Kit, Battery BR Only | 1 | $120.89 | Out of Stock | Notify Me |
| 3 | T2507071 Battery Kit | Battery Kit JP Only | 1 | $142.25 | Out of Stock | Notify Me |
| 3 | T2506715 Kit, Battery, YTX9-BS | Kit, Battery, YTX9-BS EF & GR Markets Only | 1 | $116.06 | Out of Stock | Notify Me |
| 5 | JP403002 Damper Relay Starter | Damper Relay Starter | 1 | $4.33 | Backorder — Mid August 2026 | 1 |
| 6 | TA402202 Cable, Relay-Motor Starter | Cable, Relay-Motor Starter | 1 | $28.46 | Available to order | 1 |
| 7 | JL113841 Clamp Cable Tie | Clamp Cable Tie | 1 | $0.66 | Out of Stock | Notify Me |
| 8 | TA402003 Starter Relay | Starter Relay | 1 | $53.94 | Available to order | 1 |
| 9 | TA401600 Horn | Horn | 1 | $41.20 | Available to order | 1 |
| 10 | LBU00132 Screw, Btn Hd | Screw, Btn Hd | 1 | $1.36 | Available to order | 1 |
| 11 | TA403608 Sensor, Roll Over | Sensor, Roll Over | 1 | $27.22 | Available to order | 1 |
| 12 | PA181294 Bolt, Socket Head | Bolt, Socket Head | 2 | $1.78 | Out of Stock | Notify Me |
| 13 | JL113825 Strap | Strap | 1 | $3.29 | Available to order | 1 |
| 14 | TA161225 Strap | Strap | 2 | $0.60 | Out of Stock | Notify Me |
| 15 | LBU00056 Screw, Btn Hd, M6 x 1 x L, 10 x Brt | Screw, Btn Hd, M6 x 1 x L, 10 x Brt | 1 | $0.46 | Available to order | 1 |
| 16 | AA201387 Clamp, Cable | Clamp, Cable | 4 | $1.01 | Available to order | 4 |
| 17 | 60111420 Cable Tie Lock | Cable Tie Lock | 2 | $0.40 | Available to order | 2 |
| 20 | LCL00002 Nut, Hex, Flgd, M6 | Nut, Hex, Flgd, M6 | 1 | $0.22 | Out of Stock | Notify Me |
| 21 | JD402212 Band (200mm) | Band (200mm) | 4 | $0.34 | Out of Stock | Notify Me |
| 22 | TA181372 Cover, Switch Ignition Lower | Cover, Switch Ignition Lower | 1 | $15.06 | Out of Stock | Notify Me |
| 23 | TA161213 Protector Cable | Protector Cable | 1 | $4.21 | Backorder — Early August 2026 | 1 |
| 24 | GL402242 Pad Support - Cable Tie | Pad Support - Cable Tie | 1 | $0.60 | Out of Stock | Notify Me |
| 25 | TA181373 Bracket, Cover Switch, Ignition | Bracket, Cover Switch, Ignition | 1 | $6.02 | Out of Stock | Notify Me |
| 28 | TA402292 Cable Fuel Pump | Cable Fuel Pump | 1 | $21.56 | Available to order | 1 |
| 29 | AZ381600 Cap | Cap | 1 | $0.60 | Available to order | 1 |
| 30 | JG402228 Fuse, Mini, 10A | Fuse, Mini, 10A | 7 | $4.60 | Available to order | 7 |
| 31 | JG402229 Fuse, 15A | Fuse, 15A | 5 | $0.67 | Available to order | 5 |
| 32 | JG402230 Fuse, 30A | Fuse, 30A | 1 | $0.91 | Available to order | 1 |
| 33 | TA403402 Charger, Socket | Charger, Socket | 1 | $60.39 | Available to order | 1 |
| 34 | TA403403 Unit Control Charger | Unit Control Charger | 1 | $68.40 | Available to order | 1 |
| 35 | LBR00020 Screw, Tapping Pan Cross, Dia 2 | Screw, Tapping Pan Cross, Dia 2 | 2 | $0.26 | Backorder — Late August 2026 | 2 |
| 36 | LBU00222 Screw, Button Head | Screw, Button Head | 2 | $0.22 | Out of Stock | Notify Me |
| 38 | TA181338 Flap, Socket, USB | Flap, Socket, USB | 1 | $1.53 | Available to order | 1 |
| 39 | TA402287 Cable, Harness | Cable, Harness | 1 | $81.72 | Out of Stock | Notify Me |
| 40 | TA402282 Cable, Harness | Cable, Harness | 1 | $22.33 | Out of Stock | Notify Me |
| 41 | TA382602 Clamp | Clamp | 1 | $4.21 | Out of Stock | Notify Me |
| 42 | TA382600 Clip | Clip | 1 | $0.60 | Backorder — Early August 2026 | 1 |
| 43 | JR381101 Clamp | Clamp | 1 | $0.60 | Out of Stock | Notify Me |
| 44 | PD402211 Clamp, headlight harness | Clamp, headlight harness | 1 | $4.21 | Out of Stock | Notify Me |
| 45 | TA401434 Oil Pressure Switch | Oil Pressure Switch | 1 | $13.94 | Available to order | 1 |
| 46 | DK101340 O Ring | O Ring | 1 | $0.57 | Available to order | 1 |
