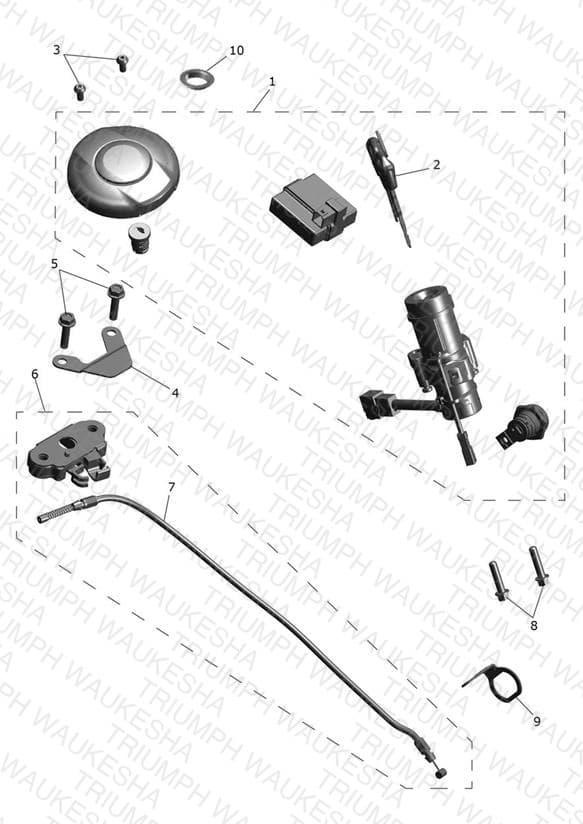

Lockset
Parts (10)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | TA232625 Set Lock | Set Lock | 1 | $540.87 | Backorder — Mid October 2026 | 1 |
| 2 | TA232603 Set Key | Set Key | 1 | $18.20 | Obsolete | View Details |
| 3 | LBU00231 Button Hd Screw | Button Hd Screw | 2 | $0.28 | Available to order | 2 |
| 4 | JL232604 Cover, Latch | Cover, Latch | 1 | $1.21 | Available to order | 1 |
| 5 | KADF0625 Bolt, Flanged, M6 x 1 | Bolt, Flanged, M6 x 1 | 2 | $0.41 | Available to order | 2 |
| 6 | TA232608 Seat Latch Assembly | Seat Latch Assembly | 1 | $12.43 | Available to order | 1 |
| 7 | TA232606 Seat Latch Cable | Seat Latch Cable | 1 | $6.90 | Out of Stock | Notify Me |
| 8 | DH101386 Hex Bolt, Flgd | Hex Bolt, Flgd | 2 | $0.49 | Available to order | 2 |
| 9 | TA232602 Bracket, Lock | Bracket, Lock | 1 | $2.53 | Available to order | 1 |
| 10 | YTA15012 Fuel Tank Cap Seal | Fuel Tank Cap Seal | 1 | $15.62 | Available to order | 1 |
