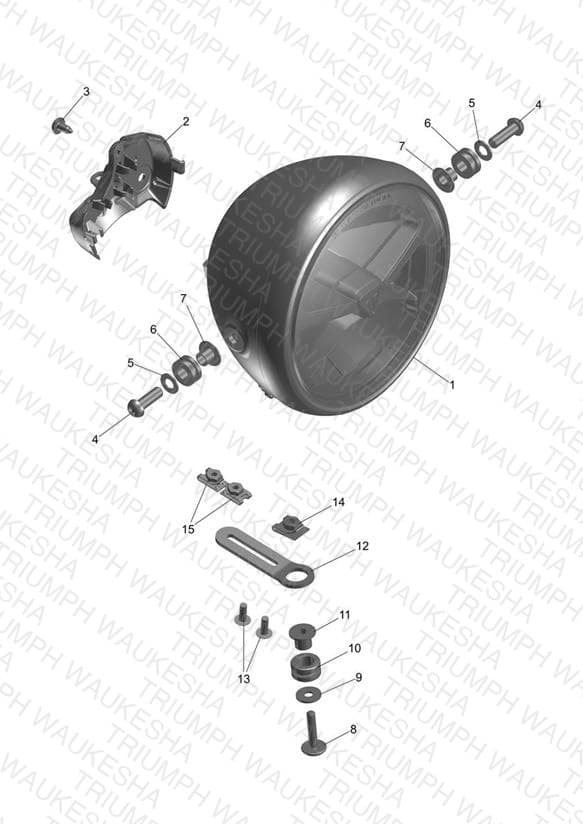

Headlight
Parts (15)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | TA401029 Headlamp | Headlamp | 1 | $329.16 | Backorder — Late August 2026 | 1 |
| 2 | TA401013 Holder, Coupler, Headlamp | Holder, Coupler, Headlamp | 1 | $2.03 | Available to order | 1 |
| 3 | BF185019 Clip, Plastic | Clip, Plastic | 1 | $0.66 | Available to order | 1 |
| 4 | LBU00181 Screw, Btn Hd, M8 x 1.25 | Screw, Btn Hd, M8 x 1.25 | 2 | $1.13 | Available to order | 2 |
| 5 | 22150241 Plain Washer | Plain Washer | 2 | $0.05 | Backorder — Early August 2026 | 2 |
| 6 | JP113815 Grommet | Grommet | 2 | $0.62 | Backorder — Late August 2026 | 2 |
| 7 | TA181328 Collar | Collar | 2 | $1.19 | Out of Stock | Notify Me |
| 8 | YTA05013 Hex Hd Bolt, M6 | Hex Hd Bolt, M6 | 1 | $0.60 | Out of Stock | Notify Me |
| 9 | YTA05014 Metal, Plain Washer | Metal, Plain Washer | 1 | $0.60 | Out of Stock | Notify Me |
| 10 | YTA05015 Rubber Bush | Rubber Bush | 1 | $0.60 | Out of Stock | Notify Me |
| 11 | YTA05017 Collar | Collar | 1 | $1.19 | Out of Stock | Notify Me |
| 12 | YTA05016 Mounting Bracket | Mounting Bracket | 1 | $4.21 | Out of Stock | Notify Me |
| 13 | JL181024 Bolt, Socket, M5 x 0.8 | Bolt, Socket, M5 x 0.8 | 2 | $0.60 | Out of Stock | Notify Me |
| 14 | YTA05018 Clip, Nut, M6 | Clip, Nut, M6 | 1 | $0.60 | Out of Stock | Notify Me |
| 15 | JG171031 Nut, Clip, M5 | Nut, Clip, M5 | 2 | $0.59 | Available to order | 2 |
