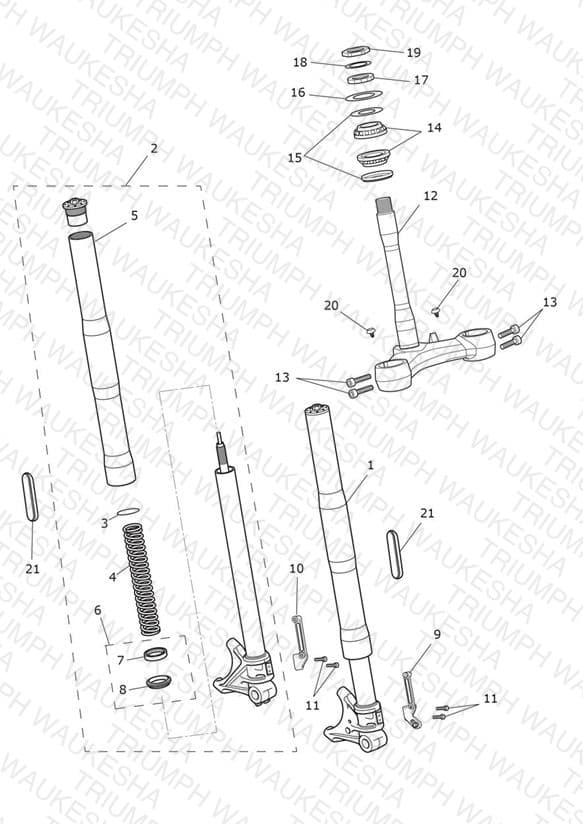

Front Forks & Lower Yoke
Parts (21)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2041973 Stanchion Assy, LH | Stanchion Assy, LH | 1 | $2464.38 | Available to order | 1 |
| 2 | T2041974 Stanchion Assy, RH | Stanchion Assy, RH | 1 | $2464.38 | Available to order | 1 |
| 3 | T2040691 O-Ring, Top Cap | O-Ring, Top Cap | 2 | $10.81 | Available to order | 2 |
| 4 | T2046279 Spring, Fork | Spring, Fork | 2 | $249.05 | Available to order | 2 |
| 5 | T2046278 Outer Tube Assembly, Gold | Outer Tube Assembly, Gold | 2 | $2358.93 | Out of Stock | Notify Me |
| 6 | T2041072 Seal Kit, Front Forks | Seal Kit, Front Forks | 2 | $77.97 | Available to order | 2 |
| 7 | T2040683 Oil Seal | Oil Seal | 2 | $42.32 | Available to order | 2 |
| 8 | T2041074 Dust Seal | Dust Seal | 2 | $35.62 | Available to order | 2 |
| 9 | T2043546 Mudguard Support, LH | Mudguard Support, LH | 1 | $228.42 | Available to order | 1 |
| 10 | T2043547 Mudguard Support, RH | Mudguard Support, RH | 1 | $228.42 | Available to order | 1 |
| 11 | T3050355 Screw, Cap/Hd, M5 x 16, Slv, Enc | Screw, Cap/Hd, M5 x 16, Slv, Enc | 4 | $0.59 | Available to order | 4 |
| 12 | T2044713 Lower Yoke Assembly | Lower Yoke Assembly | 1 | $524.00 | Available to order | 1 |
| 13 | T3050324 Screw, Cap/Hd, M8 x 1.25 x 35, Slv | Screw, Cap/Hd, M8 x 1.25 x 35, Slv | 4 | $4.74 | Available to order | 4 |
| 14 | T3800091 Bearing, Sac | Bearing, Sac | 2 | $33.95 | Available to order | 2 |
| 15 | T3600234 Dust Seal, Dia 55 | Dust Seal, Dia 55 | 2 | $8.34 | Available to order | 2 |
| 16 | T2042138 Cover, Headstock Bearing | Cover, Headstock Bearing | 1 | $10.90 | Out of Stock | Notify Me |
| 17 | T2040301 Adjuster Nut, M30, Lower | Adjuster Nut, M30, Lower | 1 | $28.50 | Available to order | 1 |
| 18 | T2044183 Washer, Headstock | Washer, Headstock | 1 | $8.30 | Available to order | 1 |
| 19 | T2040304 Locknut, M30 | Locknut, M30 | 1 | $20.60 | Available to order | 1 |
| 20 | T3450222 Plug, Fir Tree, 6.6 x 22 | Plug, Fir Tree, 6.6 x 22 | 2 | $3.18 | Backorder — Early September 2026 | 2 |
| 21 | T2700332 Reflector, Amber, Oval | Reflector, Amber, Oval | 2 | $6.39 | Available to order | 2 |
