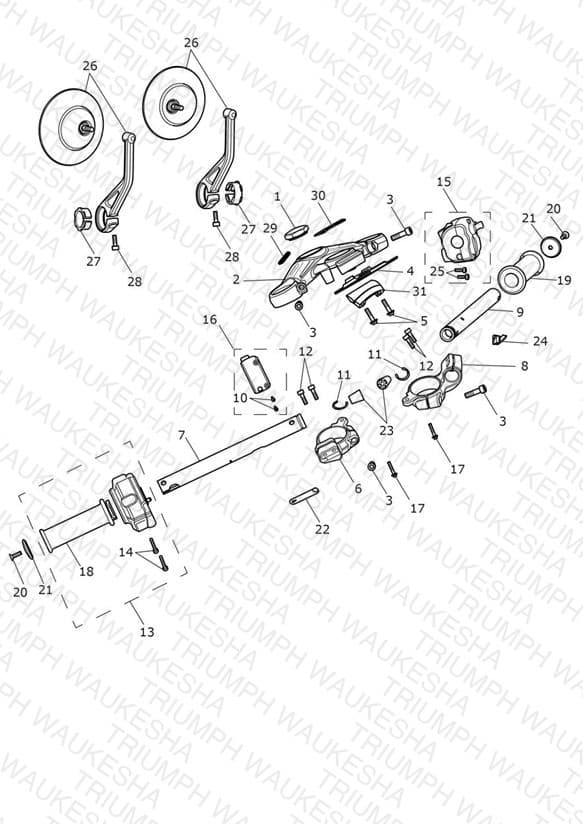

Handlebars, Top Yoke & Mirrors
Parts (32)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2046999 Top Nut, Upper Yoke, M25 | Top Nut, Upper Yoke, M25 | 1 | $26.86 | Available to order | 1 |
| 2 | T2044825 Upper Yoke | Upper Yoke | 1 | $633.73 | Available to order | 1 |
| 3 | T3050324 Screw, Cap/Hd, M8 x 1.25 x 35, Slv | Screw, Cap/Hd, M8 x 1.25 x 35, Slv | 4 | $4.74 | Available to order | 4 |
| 4 | T2041583 Mount, Instruments | Mount, Instruments | 1 | $40.87 | Available to order | 1 |
| 5 | T3331110 Screw, Pan/Hd, Tx, M6 x 25, Enc | Screw, Pan/Hd, Tx, M6 x 25, Enc | 4 | $1.06 | Available to order | 4 |
| 6 | T2042167 Riser, RH, Forged, Low | Riser, RH, Forged, Low | 1 | $195.81 | Available to order | 1 |
| 7 | T2048481 Tube, Handlebar, 22.2, Black, RH | Tube, Handlebar, 22.2, Black, RH | 1 | $197.72 | Available to order | 1 |
| 8 | T2042168 Riser, LH, Forged, Low | Riser, LH, Forged, Low | 1 | $195.81 | Available to order | 1 |
| 9 | T2046470 Tube, Handlebar, 22.2, Black, LH | Tube, Handlebar, 22.2, Black, LH | 1 | $197.72 | Available to order | 1 |
| 10 | T3331826 Screw, Pan/Hd, M4 x 20, Blk | Screw, Pan/Hd, M4 x 20, Blk | 2 | $1.13 | Obsolete | View Details |
| 11 | T3500178 Circlip, Crescent, 22 x 1.2 | Circlip, Crescent, 22 x 1.2 | 2 | $1.11 | Available to order | 2 |
| 12 | T3050334 Screw, Cap/Hd, M6 x 20, Slv | Screw, Cap/Hd, M6 x 20, Slv | 4 | $1.51 | Available to order | 4 |
| 13 | T2044045 Sensor, APS, Assembly | Sensor, APS, Assembly | 1 | $249.05 | Available to order | 1 |
| 14 | T2041629 Screw, APS Housing | Screw, APS Housing | 1 | $2.17 | Available to order | 1 |
| 15 | T2043437 Switchcube, Inst Control, LH | Switchcube, Inst Control, LH All Except CA, JP, US | 1 | $258.75 | Available to order | 1 |
| 15 | T2043529 Switchcube, LH, Inst Control, No DRL | Switchcube, LH, Inst Control, No DRL CA, JP & US Only | 1 | $184.39 | Available to order | 1 |
| 16 | T2048632 Switchcube, RH | Switchcube, RH | 1 | $186.31 | Available to order | 1 |
| 17 | T3330311 Bolt, RHHF, M5 x 20, Enc | Bolt, RHHF, M5 x 20, Enc | 2 | $0.57 | Available to order | 2 |
| 18 | T2042119 Grip, APS, RH | Grip, APS, RH | 1 | $52.29 | Available to order | 1 |
| 19 | T2041579 Grip, Handlebar, LH | Grip, Handlebar, LH | 1 | $18.16 | Available to order | 1 |
| 20 | T3330923 Screw, Csk, M6 x 20, Slv, Enc | Screw, Csk, M6 x 20, Slv, Enc | 2 | $2.37 | Available to order | 2 |
| 21 | T2042476 Bar End Finisher | Bar End Finisher | 2 | $22.52 | Available to order | 2 |
| 22 | T3700259 Rubber Band, 43mm | Rubber Band, 43mm | 1 | $3.90 | Available to order | 1 |
| 23 | T3450154 Bung, Tapered, EPDM | Bung, Tapered, EPDM | 1 | $3.77 | Available to order | 1 |
| 24 | T2045856 Plastic Plug, 22.2 | Plastic Plug, 22.2 | 1 | $2.25 | Available to order | 1 |
| 25 | T3331790 Screw, Pan/Hd, Ph, M5 x 30, Blk | Screw, Pan/Hd, Ph, M5 x 30, Blk | 1 | $0.89 | Available to order | 1 |
| 26 | T2060935 Bar End Mirror Assy, Brushed | Bar End Mirror Assy, Brushed | 1 | $142.58 | Available to order | 1 |
| 27 | T2060499 Friction Ring, 22.2 | Friction Ring, 22.2 | 2 | $36.96 | Available to order | 2 |
| 28 | T3050159 Capscrew, SKT HD, M6 x 20, SS | Capscrew, SKT HD, M6 x 20, SS | 2 | $5.14 | Available to order | 2 |
| 29 | T2044826 Badge, TFC, 30.8 x 8.4 | Badge, TFC, 30.8 x 8.4 | 1 | $25.20 | Available to order | 1 |
| 30 | T2044827 Badge, Yoke, Numbered | Badge, Yoke, Numbered | 1 | $25.20 | Out of Stock | Notify Me |
| 31 | T2304933 Spacer, Bracket, Instrument | Spacer, Bracket, Instrument | 1 | $20.02 | Backorder — Late August 2026 | 1 |
