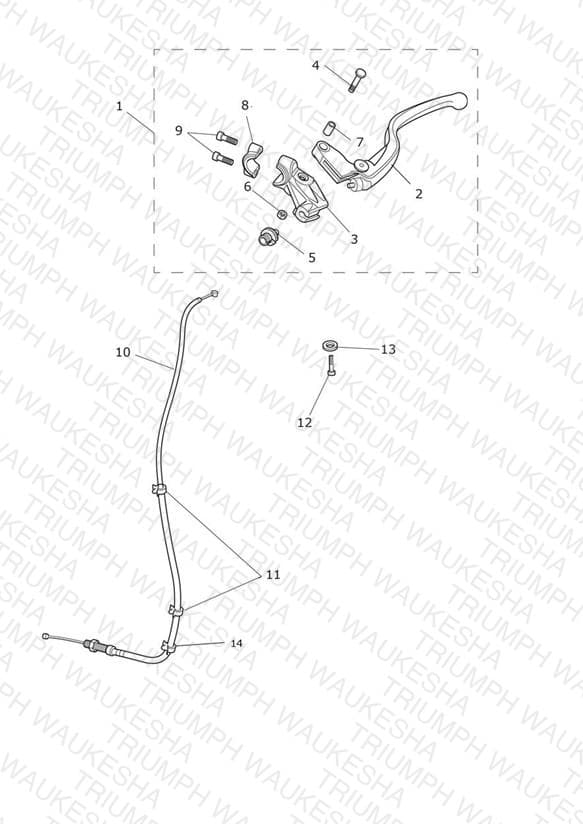

Clutch Controls
Parts (14)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2049998 Clutch Lever Assembly, MCS | Clutch Lever Assembly, MCS | 1 | $129.21 | Out of Stock | Notify Me |
| 2 | T2048335 Clutch Lever, MCS, Adjustable | Clutch Lever, MCS, Adjustable | 1 | $89.71 | Available to order | 1 |
| 3 | T2046082 Clutch Lever Bracket | Clutch Lever Bracket | 1 | $38.96 | Backorder — Early October 2026 | 1 |
| 4 | T2046524 Pivot Bolt | Pivot Bolt | 1 | $2.63 | Available to order | 1 |
| 5 | T2046520 Adjuster Screw | Adjuster Screw | 1 | $8.53 | Available to order | 1 |
| 6 | T2046521 Nut, Pivot Bolt | Nut, Pivot Bolt | 1 | $1.21 | Available to order | 1 |
| 7 | T2043014 Collar, Clutch Lever | Collar, Clutch Lever | 1 | $3.29 | Available to order | 1 |
| 8 | T2046510 Clamp, Clutch lever bracket | Clamp, Clutch lever bracket | 1 | $16.04 | Available to order | 1 |
| 9 | T2046522 Bolt, Handlebar Clamp | Bolt, Handlebar Clamp | 2 | $2.00 | Available to order | 2 |
| 10 | T2048004 Clutch Cable | Clutch Cable | 1 | $54.75 | Available to order | 1 |
| 11 | T3700182 Clip, Omega, 18mm x 14mm | Clip, Omega, 18mm x 14mm | 2 | $4.12 | Available to order | 2 |
| 12 | T3330283 Screw, Pan/Hd, Tx, M4 x 20, Blk | Screw, Pan/Hd, Tx, M4 x 20, Blk | 1 | $4.74 | Available to order | 1 |
| 13 | T3551088 Washer, 4.25 x 8 x 0.8 | Washer, 4.25 x 8 x 0.8 | 1 | $0.97 | Available to order | 1 |
| 14 | T3700108 Clip, Cable, 14.3 x 10 | Clip, Cable, 14.3 x 10 | 1 | $3.24 | Available to order | 1 |
