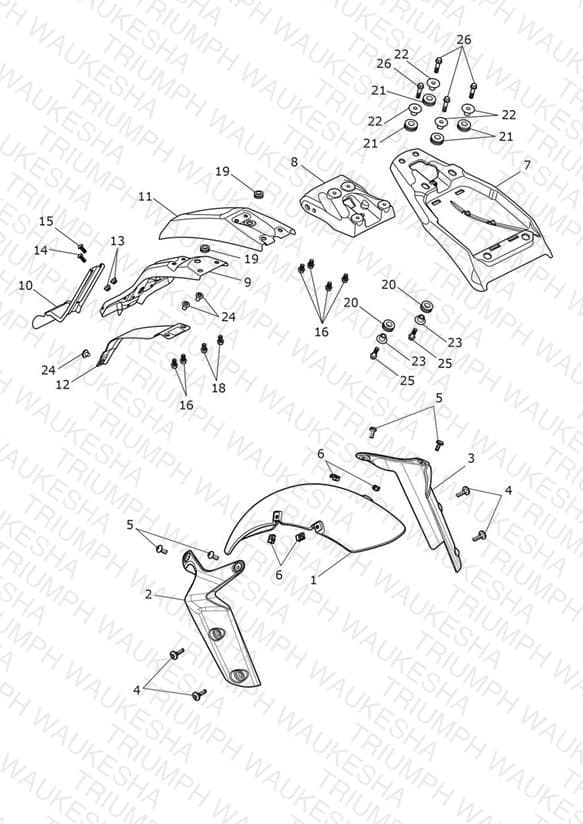

Mudguards
Parts (25)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2308458 Front Mudguard, Carbon Fibre | Front Mudguard, Carbon Fibre | 1 | $350.43 | Available to order | 1 |
| 2 | T2304475-PI Bracket, Mudguard, RH | Bracket, Mudguard, RH Carbon Black | 1 | $124.22 | Available to order | 1 |
| 3 | T2304476-PI Brackt, Mudguard, LH | Brackt, Mudguard, LH Carbon Black | 1 | $124.22 | Available to order | 1 |
| 4 | T3330849 Bolt, But/Hd, M6 x 25, Enc | Bolt, But/Hd, M6 x 25, Enc | 4 | $2.40 | Available to order | 4 |
| 5 | T3330955 Screw, But/Hd, M5 x 14, Slv, Enc | Screw, But/Hd, M5 x 14, Slv, Enc | 4 | $9.00 | Available to order | 4 |
| 6 | T3350161 Nut, Captive, M5 | Nut, Captive, M5 | 4 | $4.84 | Available to order | 4 |
| 7 | T2311902 Mudguard, Plastic, Textured | Mudguard, Plastic, Textured | 1 | $284.65 | Available to order | 1 |
| 8 | T2309959 Rear Light Mount | Rear Light Mount | 1 | $45.33 | Available to order | 1 |
| 9 | T9701311 Bracket, Registration Plate | Bracket, Registration Plate | 1 | $51.17 | Out of Stock | Notify Me |
| 10 | T9701313 Bracket, Reflector, Pressed | Bracket, Reflector, Pressed | 1 | $22.56 | Out of Stock | Notify Me |
| 11 | T9701309 Bracket, Extension, Pressed | Bracket, Extension, Pressed | 1 | $45.61 | Out of Stock | Notify Me |
| 12 | T2308756 Cover, Tail Tidy, Moulding | Cover, Tail Tidy, Moulding | 1 | $14.18 | Available to order | 1 |
| 13 | T3350010 Locknut, Flgd, M5 | Locknut, Flgd, M5 | 2 | $2.40 | Available to order | 2 |
| 14 | T3332655 Screw, But/HD, M5 x 12. Slv | Screw, But/HD, M5 x 12. Slv | 1 | $0.95 | Unavailable | View Details |
| 15 | T3330696 Screw, But/Hd, M5 X 16, Slv | Screw, But/Hd, M5 X 16, Slv | 1 | $6.06 | Available to order | 1 |
| 16 | T3205061 Bolt, HHF, Lghtd, M6 X 10, Slv | Bolt, HHF, Lghtd, M6 X 10, Slv | 6 | $7.18 | Available to order | 6 |
| 18 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 2 | $3.73 | Available to order | 2 |
| 19 | T3020021 Grommet, Id 8.5, Od 10.5 | Grommet, Id 8.5, Od 10.5 | 2 | $2.91 | Out of Stock | Notify Me |
| 20 | T3020153 Grommet, 13 x 3 x 10 | Grommet, 13 x 3 x 10 | 2 | $2.04 | Available to order | 2 |
| 21 | T3021100 Grommet, Dia 13 x 1.8 | Grommet, Dia 13 x 1.8 | 4 | $3.04 | Available to order | 4 |
| 22 | T3013361 Flanged Sleeve, M6 x 11.3 | Flanged Sleeve, M6 x 11.3 | 4 | $7.11 | Available to order | 4 |
| 23 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 | 2 | $6.15 | Available to order | 2 |
| 24 | T3010062 Flanged Sleeve, M6 x 7.8 x 2.85 | Flanged Sleeve, M6 x 7.8 x 2.85 | 3 | $7.60 | Available to order | 3 |
| 25 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv | 2 | $4.84 | Available to order | 2 |
| 26 | T3205067 Bolt, HHF, Lghtd, M6 x 25, Slv | Bolt, HHF, Lghtd, M6 x 25, Slv | 4 | $2.61 | Available to order | 4 |
