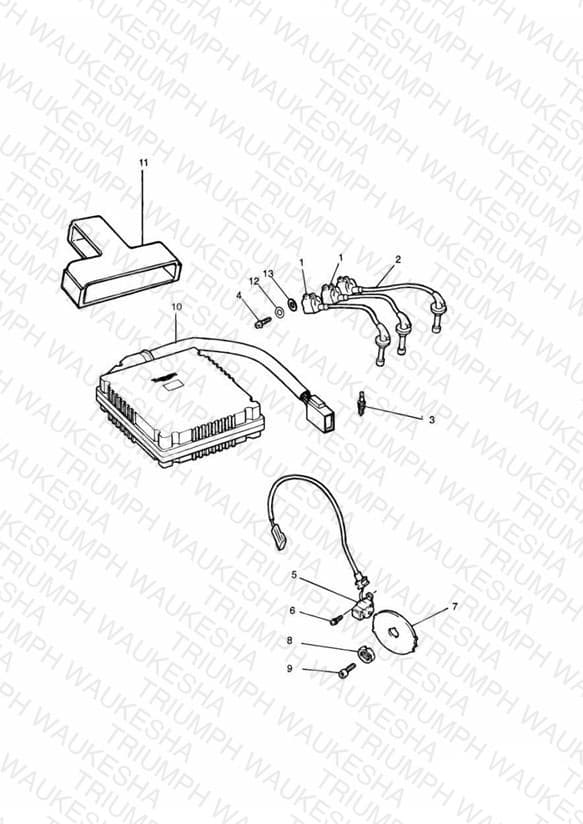

Ignition System
Parts (14)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1290046 Ignition coil | Ignition coil 3 Cyl | 3 | $263.76 | Available to order | 3 |
| 2 | T1290015 Ignition cable | Ignition cable Set 3 Cyl | 1 | $169.19 | Available to order | 1 |
| 3 | T1290024 Spark Plug, DPR8EA-9 | Spark Plug, DPR8EA-9 Standard NGK DPR 9 EA-9 | 3 | $7.34 | Available to order | 3 |
| 4 | T3338989 Screw, But/Hd, M5 x 20, S/S | Screw, But/Hd, M5 x 20, S/S » 67827 | 6 | $6.77 | Available to order | 6 |
| 4 | T3330728 Screw, Pan/Hd, Tx, M5 x 16, Enc | Screw, Pan/Hd, Tx, M5 x 16, Enc 67828 » | 6 | $0.97 | Available to order | 6 |
| 5 | T1290022 Sensor | Sensor » ENG NO 56144 | 1 | $263.76 | Available to order | 1 |
| 6 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc | 2 | $1.40 | Available to order | 2 |
| 7 | T1290110 Rotor | Rotor ** Part No Longer Available ** | 1 | $32.16 | Obsolete | View Details |
| 8 | 1100039-T0301 Clamping piece | Clamping piece | 1 | $15.14 | Available to order | 1 |
| 9 | 3050001-T0301 Capscrew | Capscrew M8 x 20mm | 1 | $2.63 | Obsolete | View Details |
| 10 | T1290063 Igniter | Igniter | 1 | $330.13 | Obsolete | View Details |
| 11 | 1290012-T0301 Mounting strap | Mounting strap | 1 | $10.05 | Obsolete | View Details |
| 12 | T3555023 Washer, 5.3 x 18 x 1.6 | Washer, 5.3 x 18 x 1.6 » 67827 | 6 | $1.27 | Available to order | 6 |
| 13 | T3550082 Washer rubber | Washer rubber » 67827 | 6 | $0.75 | Available to order | 6 |
