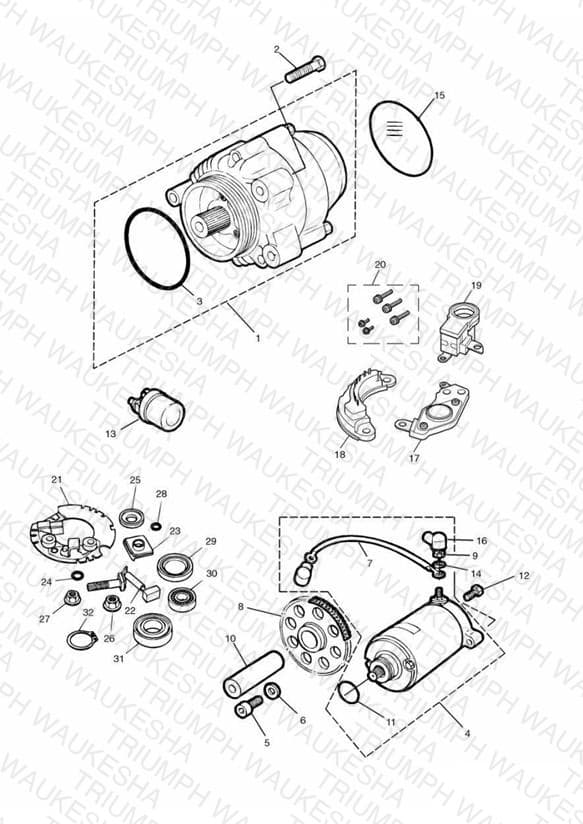

Alternator/Starter
Parts (33)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1300014 Alternator | Alternator Without finisher disc | 1 | $1072.04 | Obsolete | View Details |
| 2 | T3330072 Capscrew | Capscrew M8 x 43mm | 3 | $0.86 | Obsolete | View Details |
| 3 | T3600100 O ring | O ring | 1 | $2.17 | Available to order | 1 |
| 4 | 1310000-T0301 Starter motor | Starter motor | 1 | $802.92 | Available to order | 1 |
| 5 | T3051062 Screw, M6 x 12, Enc, Raw | Screw, M6 x 12, Enc, Raw | 1 | $1.47 | Available to order | 1 |
| 6 | T3555004 Washer, 6.4 x 14 x 1.6 | Washer, 6.4 x 14 x 1.6 | 1 | $1.40 | Available to order | 1 |
| 7 | 1310004-T0301 Cable | Cable | 1 | $24.49 | Obsolete | View Details |
| 8 | T1220130 Idler gear | Idler gear * PART NO LONGER AVAILABLE * 15T | 1 | $145.43 | Obsolete | View Details |
| 9 | T3350300 Nut, M6 x 1.0, Slv | Nut, M6 x 1.0, Slv | 3 | $0.94 | Available to order | 3 |
| 10 | T1220457 Spindle, Idler Gear | Spindle, Idler Gear | 1 | $14.16 | Available to order | 1 |
| 11 | T3600115 O Ring | O Ring | 1 | $3.39 | Backorder — Mid September 2026 | 1 |
| 12 | T3205067 Bolt, HHF, Lghtd, M6 x 25, Slv | Bolt, HHF, Lghtd, M6 x 25, Slv | 2 | $2.46 | Available to order | 2 |
| 13 | T1310008 Starter Solenoid Assy | Starter Solenoid Assy | 1 | $73.17 | Available to order | 1 |
| 14 | 3550018-T0301 Spring Washer | Spring Washer M6 | 1 | $0.82 | Obsolete | View Details |
| 15 | 1300040-T0301 Finisher | Finisher | 1 | $12.46 | Available to order | 1 |
| 16 | T1310007 Boot cover | Boot cover | 2 | $0.84 | Obsolete | View Details |
| 17 | T1300016 Regulator assembly | Regulator assembly | 1 | $188.23 | Available to order | 1 |
| 18 | T1300017 Holder assembly | Holder assembly * PART NO LONGER AVAILABLE * | 1 | $321.25 | Obsolete | View Details |
| 19 | T1300018 Holder brush | Holder brush | 1 | $50.37 | Available to order | 1 |
| 20 | T1300019 Service kit | Service kit | 1 | $16.56 | Out of Stock | Notify Me |
| 21 | T1310022 Holder, Sub Assy, Starter | Holder, Sub Assy, Starter | 1 | $33.57 | Available to order | 1 |
| 22 | T1310025 Brush, Sub Assy, Starter | Brush, Sub Assy, Starter | 1 | $30.63 | Available to order | 1 |
| 23 | T1310027 Brushing Insulation | Brushing Insulation PART NO LONGER AVAILABLE | 1 | $2.29 | Obsolete | View Details |
| 24 | T1310029 O Ring, Starter Motor | O Ring, Starter Motor | 1 | $2.25 | Backorder — Early August 2026 | 1 |
| 25 | T1310030 Brushing Insulation | Brushing Insulation | 1 | $1.95 | Obsolete | View Details |
| 26 | T1310031 Nut, Starter Motor | Nut, Starter Motor | 1 | $1.05 | Obsolete | View Details |
| 27 | T1310032 Nut, Starter Motor | Nut, Starter Motor | 1 | $2.21 | Obsolete | View Details |
| 28 | T1310034 O Ring, Starter Motor | O Ring, Starter Motor | 1 | $1.40 | Available to order | 1 |
| 29 | T1310033 Seal, Starter Motor | Seal, Starter Motor | 1 | $5.17 | Obsolete | View Details |
| 30 | T1310035 Bearing, Starter Motor | Bearing, Starter Motor | 1 | $7.52 | Available to order | 1 |
| 31 | T1310036 Bearing, Starter Motor | Bearing, Starter Motor | 1 | $9.94 | Obsolete | View Details |
| 32 | T1310037 Circlip, Starter Motor | Circlip, Starter Motor | 1 | $1.40 | Out of Stock | Notify Me |
| 33 | 1310009-T0301 Terminal Kit, Starter Solenoid | Terminal Kit, Starter Solenoid Not Illustrated | 1 | $12.63 | Backorder — Late August 2026 | 1 |
