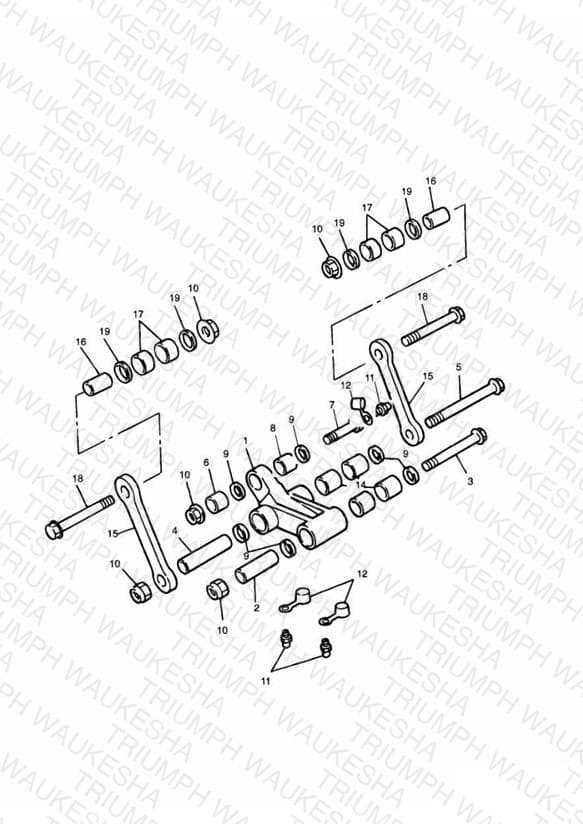

Rear Suspension Linkage
Parts (18)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 2059300-T0301 Drag link | Drag link | 1 | $94.11 | Obsolete | View Details |
| 2 | 2059140-T0301 Sleeve | Sleeve | 1 | $20.22 | Obsolete | View Details |
| 3 | 3330251-T0301 Screw, Torx, M12 x 119 | Screw, Torx, M12 x 119 M12 x 119mm | 1 | $6.14 | Unavailable | View Details |
| 4 | 2059310-T0301 Sleeve | Sleeve | 1 | $11.08 | Obsolete | View Details |
| 5 | T3330261 Screw, Torx | Screw, Torx M12 x 130mm | 1 | $16.32 | Obsolete | View Details |
| 6 | 2059445-T0301 Sleeve | Sleeve | 1 | $7.30 | Available to order | 1 |
| 7 | T2059321 Bolt | Bolt | 1 | $8.75 | Available to order | 1 |
| 8 | T3800060 Bearing, Needle Roller, 202620 | Bearing, Needle Roller, 202620 | 1 | $37.15 | Available to order | 1 |
| 9 | T3600040 Seal | Seal | 6 | $6.94 | Available to order | 6 |
| 10 | T3350234 Locknut, Flgd, M12 x 1.25 | Locknut, Flgd, M12 x 1.25 | 5 | $6.07 | Available to order | 5 |
| 11 | 3450007-T0301 Grease nipple | Grease nipple | 3 | $1.91 | Out of Stock | Notify Me |
| 12 | 3450008-T0301 Grease cap | Grease cap * PART NO LONGER AVAILABLE * | 3 | $1.37 | Obsolete | View Details |
| 14 | 3800025-T0301 Needle bearing | Needle bearing | 4 | $18.16 | Available to order | 4 |
| 15 | T2059470 Drop link | Drop link | 2 | $39.96 | Obsolete | View Details |
| 16 | 2059330-T0301 Sleeve | Sleeve | 2 | $38.50 | Available to order | 2 |
| 17 | T3800050 Bearing Needle Roller 182416 | Bearing Needle Roller 182416 | 4 | $33.01 | Available to order | 4 |
| 18 | T3150304 Bolt, Hex HD, Flgd, M12x85 | Bolt, Hex HD, Flgd, M12x85 M12 x 85mm | 2 | $3.43 | Obsolete | View Details |
| 19 | 3600080-T0301 Seal | Seal | 4 | $6.94 | Available to order | 4 |
