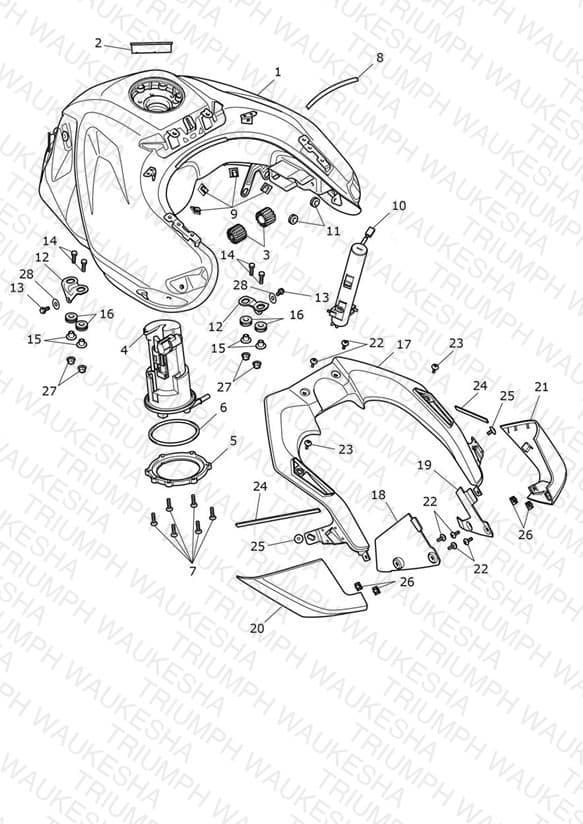

Fuel Tank, Fuel Pump & Fittings
Parts (29)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2402659-PO Fuel Tank Assembly, Matt Carbon Black | Fuel Tank Assembly, Matt Carbon Black Includes Decals item 29, Clips item 9 & Locknuts item 27 | 1 | $2189.68 | Out of Stock | Notify Me |
| 2 | T2405034 Seal, Fuel Filler Cap | Seal, Fuel Filler Cap | 1 | $8.46 | Available to order | 1 |
| 3 | T2400603 Bush, Tank Mount | Bush, Tank Mount | 2 | $2.63 | Available to order | 2 |
| 4 | T2403892 Pump, Fuel, 3.5 Bar | Pump, Fuel, 3.5 Bar | 1 | $180.73 | Available to order | 1 |
| 5 | T2400562 Location Plate, Pump | Location Plate, Pump | 1 | $37.09 | Available to order | 1 |
| 6 | T2401887 Seal, Fuel Pump Module | Seal, Fuel Pump Module | 1 | $10.25 | Available to order | 1 |
| 7 | T3331234 Screw, Torx, P/H, M6 x 20, Slv | Screw, Torx, P/H, M6 x 20, Slv | 6 | $5.30 | Available to order | 6 |
| 8 | T2401664 Trim, Flange Cover | Trim, Flange Cover | 1 | $7.27 | Available to order | 1 |
| 9 | T3700296 Clip, Cable, Adhesive | Clip, Cable, Adhesive | 4 | $4.12 | Available to order | 4 |
| 10 | T2408804 Fuel Level Sender | Fuel Level Sender | 1 | $137.94 | Backorder — Mid October 2026 | 1 |
| 11 | T3020085 Grommet, Dia 18 x 9 | Grommet, Dia 18 x 9 | 2 | $2.10 | Out of Stock | Notify Me |
| 12 | T2409912 Bracket, Tank, Rear | Bracket, Tank, Rear | 2 | $10.44 | Available to order | 2 |
| 13 | T3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv | Screw, Pan/Hd, Tx, M6 x 16, Slv | 2 | $0.97 | Available to order | 2 |
| 14 | T3050334 Screw, Cap/Hd, M6 x 20, Slv | Screw, Cap/Hd, M6 x 20, Slv | 4 | $1.51 | Available to order | 4 |
| 15 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 | 4 | $5.78 | Available to order | 4 |
| 16 | T3021100 Grommet, Dia 13 x 1.8 | Grommet, Dia 13 x 1.8 | 4 | $2.85 | Available to order | 4 |
| 17 | T2311350 Fuel Tank Infill, Centre | Fuel Tank Infill, Centre | 1 | $48.47 | Backorder — Late August 2026 | 1 |
| 18 | T2311518 Tank End Panel, Infill, RH | Tank End Panel, Infill, RH | 1 | $48.47 | Available to order | 1 |
| 19 | T2311519 Tank End Panel, Infill, LH | Tank End Panel, Infill, LH | 1 | $48.47 | Available to order | 1 |
| 20 | T2311918-PO Tank End Panel, RH, Matt Carbon Black | Tank End Panel, RH, Matt Carbon Black | 1 | $320.72 | Backorder — Late September 2026 | 1 |
| 21 | T2311919-PO Tank End Panel, LH, Matt Carbon Black | Tank End Panel, LH, Matt Carbon Black | 1 | $320.72 | Available to order | 1 |
| 22 | T3330943 Screw, But/Hd, M5 x 14, Slv | Screw, But/Hd, M5 x 14, Slv | 6 | $4.92 | Available to order | 6 |
| 23 | T3331061 Bolt, But/Hd, M5 x 11, Shld, Slv | Bolt, But/Hd, M5 x 11, Shld, Slv | 2 | $5.02 | Available to order | 2 |
| 24 | T2311600 Foam Tape, Capping Panel | Foam Tape, Capping Panel | 2 | $3.67 | Available to order | 2 |
| 25 | T3330726 Screw, Btn/Hd, M6 x 12, Slv | Screw, Btn/Hd, M6 x 12, Slv | 2 | $4.42 | Available to order | 2 |
| 26 | T3350129 Nut, Captive, M5 | Nut, Captive, M5 | 4 | $3.39 | Available to order | 4 |
| 27 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 4 | $0.67 | Available to order | 4 |
| 28 | T3552004 Washer, M6 x 14 x 2 | Washer, M6 x 14 x 2 | 2 | $1.91 | Available to order | 2 |
| 29 | T2318854 Decal, Tank Badge | Decal, Tank Badge | 2 | $28.53 | Out of Stock | Notify Me |
