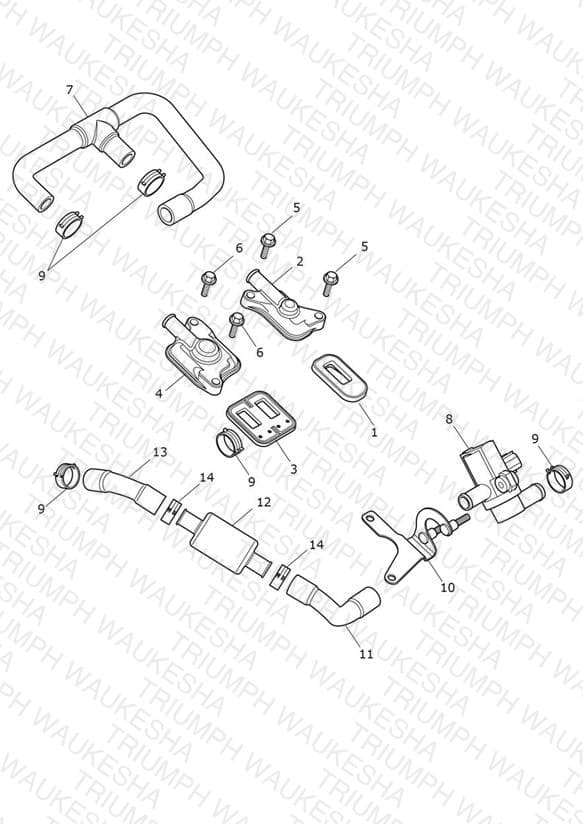

Emissions Control
Parts (14)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1250075 Reed Valve | Reed Valve | 1 | $53.13 | Available to order | 1 |
| 2 | T1250188 Cover, Reed Valve, Single | Cover, Reed Valve, Single | 1 | $36.58 | Available to order | 1 |
| 3 | T1250015 Reed Valve, Double | Reed Valve, Double | 1 | $59.87 | Available to order | 1 |
| 4 | T1250196 Cover, Reed Valve, Double | Cover, Reed Valve, Double | 1 | $55.12 | Backorder — Late September 2026 | 1 |
| 5 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv | 2 | $4.55 | Available to order | 2 |
| 6 | T3205067 Bolt, HHF, Lghtd, M6 x 25, Slv | Bolt, HHF, Lghtd, M6 x 25, Slv | 2 | $2.46 | Available to order | 2 |
| 7 | T1250751 Hose, SAI Formed | Hose, SAI Formed | 1 | $13.01 | Available to order | 1 |
| 8 | T1250522 Solenoid, SAI | Solenoid, SAI | 1 | $98.85 | Available to order | 1 |
| 9 | T3700051 Hose Clip, Dia 18.1-20 x 8mm | Hose Clip, Dia 18.1-20 x 8mm | 5 | $2.25 | Available to order | 5 |
| 10 | T1250755 Bracket, SAI Valve | Bracket, SAI Valve | 1 | $21.86 | Available to order | 1 |
| 11 | T1250097 Hose, SAI, Bottom, Formed | Hose, SAI, Bottom, Formed | 1 | $12.76 | Available to order | 1 |
| 12 | T1250095 Silencer, SAI | Silencer, SAI | 1 | $137.96 | Available to order | 1 |
| 13 | T1250096 Hose, SAI, Top, Formed | Hose, SAI, Top, Formed | 1 | $12.76 | Available to order | 1 |
| 14 | T3700050 Hose Clip, Dia 19.5-22 x 8mm | Hose Clip, Dia 19.5-22 x 8mm | 2 | $3.77 | Available to order | 2 |
