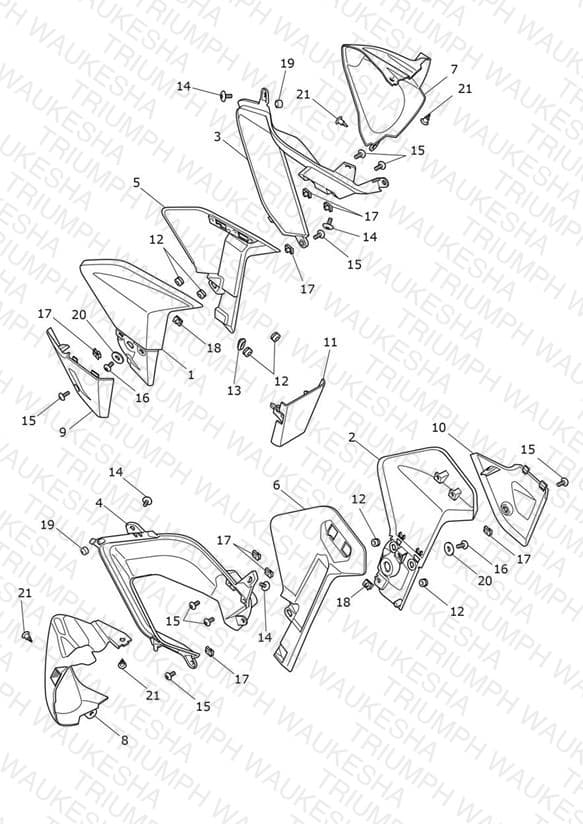

Side Panels
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2311820-PO Rad Cowl, Lower, Front, RHS, Matt Carbon Black | Rad Cowl, Lower, Front, RHS, Matt Carbon Black Matt Jet Black - Fitted to Pure White Bikes | 1 | $198.75 | Available to order | 1 |
| 2 | T2311821-PO Rad Cowl, Lower, RH, Matt Carbon Black | Rad Cowl, Lower, RH, Matt Carbon Black Matt Jet Black - Fitted to Pure White Bikes | 1 | $198.75 | Available to order | 1 |
| 3 | T2311712 Rad Cowl, Lower, Rear, RHS | Rad Cowl, Lower, Rear, RHS | 1 | $70.82 | Available to order | 1 |
| 4 | T2311713 Rad Cowl, Lower, Rear, LHS | Rad Cowl, Lower, Rear, LHS | 1 | $70.82 | Available to order | 1 |
| 5 | T2311616 Rad Cowl, Lower, Infill, RHS | Rad Cowl, Lower, Infill, RHS | 1 | $70.82 | Available to order | 1 |
| 6 | T2311617 Rad Cowl, Lower, Infill, LHS | Rad Cowl, Lower, Infill, LHS | 1 | $70.82 | Available to order | 1 |
| 7 | T2311614 Rad Cowl Duct, RHS | Rad Cowl Duct, RHS | 1 | $37.93 | Available to order | 1 |
| 8 | T2311615 Rad Cowl Duct, LHS | Rad Cowl Duct, LHS | 1 | $36.52 | Available to order | 1 |
| 9 | T2311061-PS Rad Cowl, Lower, LH, Matt Jet Black | Rad Cowl, Lower, LH, Matt Jet Black | 1 | $198.75 | Out of Stock | Notify Me |
| 10 | T2311084-PS Rad Cowl, Lower, RH, Matt Jet Black | Rad Cowl, Lower, RH, Matt Jet Black | 1 | $198.75 | Available to order | 1 |
| 11 | T2311620 Radiator Panel, Moulding | Radiator Panel, Moulding | 1 | $28.80 | Available to order | 1 |
| 12 | T3020131 Grommet, 9 x 2 x 6 | Grommet, 9 x 2 x 6 | 6 | $2.00 | Available to order | 6 |
| 13 | T3020330 Grommet, Rectangular | Grommet, Rectangular | 1 | $2.95 | Available to order | 1 |
| 14 | T3330726 Screw, Btn/Hd, M6 x 12, Slv | Screw, Btn/Hd, M6 x 12, Slv | 4 | $4.42 | Available to order | 4 |
| 15 | T3330943 Screw, But/Hd, M5 x 14, Slv | Screw, But/Hd, M5 x 14, Slv | 8 | $4.92 | Available to order | 8 |
| 16 | T3331010 Bolt, But/Hd, Skt, M6 x 16, S/S | Bolt, But/Hd, Skt, M6 x 16, S/S | 2 | $4.30 | Available to order | 2 |
| 17 | T3350129 Nut, Captive, M5 | Nut, Captive, M5 | 8 | $3.39 | Available to order | 8 |
| 18 | T3350141 Nut, Captive, M6 | Nut, Captive, M6 | 2 | $5.02 | Available to order | 2 |
| 19 | T3450108 Stand Off Rubber | Stand Off Rubber | 2 | $2.55 | Available to order | 2 |
| 20 | T3555033 Washer, 8.4 x 24 x 2 | Washer, 8.4 x 24 x 2 | 2 | $2.74 | Available to order | 2 |
| 21 | T3701150 Plastic Rivet, Push Release | Plastic Rivet, Push Release | 4 | $0.97 | Available to order | 4 |
| 22 | T2318852 Rad Cowl Decal, RH | Rad Cowl Decal, RH | 1 | $50.72 | Available to order | 1 |
| 23 | T2318853 Rad Cowl Decal, LH | Rad Cowl Decal, LH | 1 | $53.24 | Backorder — Mid September 2026 | 1 |
