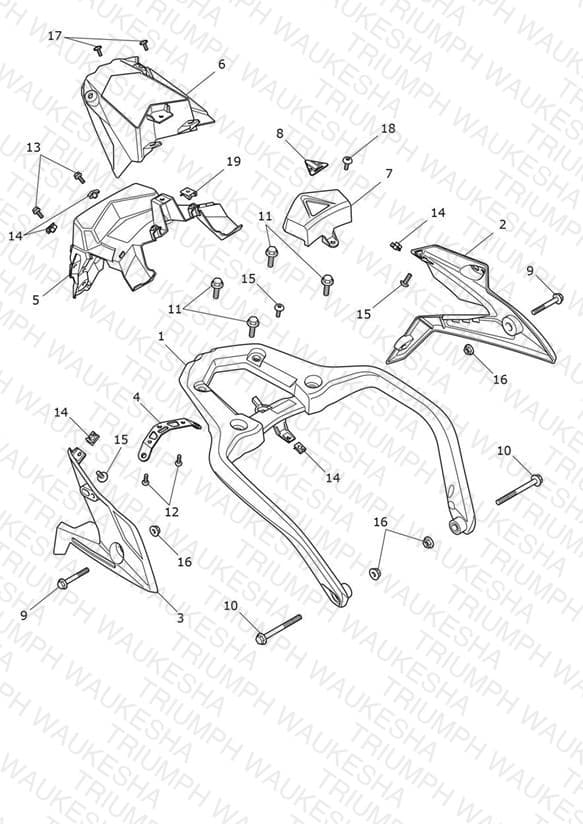

Rear Bodywork
Parts (19)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2310732-LL Grab Rail, Painted | Grab Rail, Painted | 1 | $315.96 | Available to order | 1 |
| 2 | T2309873 Number Plate Hanger, LHS | Number Plate Hanger, LHS | 1 | $72.70 | Available to order | 1 |
| 3 | T2309872 Number Plate Hanger, RHS | Number Plate Hanger, RHS | 1 | $72.70 | Available to order | 1 |
| 4 | T2310721 Bracket, Grab Rack | Bracket, Grab Rack | 1 | $55.61 | Available to order | 1 |
| 5 | T2311424 Number Plate Hanger, Centre | Number Plate Hanger, Centre | 1 | $57.03 | Available to order | 1 |
| 6 | T2309848 Infill Panel, Rear Subframe | Infill Panel, Rear Subframe | 1 | $25.44 | Backorder — Early September 2026 | 1 |
| 7 | T2309808 Finisher, Grabrack | Finisher, Grabrack | 1 | $25.34 | Available to order | 1 |
| 8 | T3951030 Badge, Symbol | Badge, Symbol | 1 | $17.78 | Backorder — Mid October 2026 | 1 |
| 9 | T3200820 Bolt, HHF, M8 x 55, Slv | Bolt, HHF, M8 x 55, Slv | 2 | $2.70 | Available to order | 2 |
| 10 | T3202323 Bolt, HHF, M8 x 80, Slv | Bolt, HHF, M8 x 80, Slv | 2 | $1.62 | Available to order | 2 |
| 11 | T3205781 Bolt, HHF, Lghtd, M8 x 1.25 x 25, Slv | Bolt, HHF, Lghtd, M8 x 1.25 x 25, Slv | 4 | $1.62 | Available to order | 4 |
| 12 | T3330627 Screw, Pan/HD, TPT, Tx, M5 x 12 | Screw, Pan/HD, TPT, Tx, M5 x 12 | 2 | $0.97 | Out of Stock | Notify Me |
| 13 | T3330891 Bolt, RHHF, M5 x 0.8 x 12, S5041 | Bolt, RHHF, M5 x 0.8 x 12, S5041 | 2 | $3.24 | Available to order | 2 |
| 14 | T3350129 Nut, Captive, M5 | Nut, Captive, M5 | 5 | $3.39 | Available to order | 5 |
| 15 | T3330941 Screw, But/Hd, Skt, M5 x 16, Slv | Screw, But/Hd, Skt, M5 x 16, Slv | 3 | $6.73 | Available to order | 3 |
| 16 | T3350004 Locknut, Flanged, M8 x 1.25 | Locknut, Flanged, M8 x 1.25 | 4 | $2.45 | Available to order | 4 |
| 17 | T3331436 Screw, S/Tap, Pan, Torx, 4 x 11, PT | Screw, S/Tap, Pan, Torx, 4 x 11, PT | 2 | $0.75 | Available to order | 2 |
| 18 | T3330943 Screw, But/Hd, M5 x 14, Slv | Screw, But/Hd, M5 x 14, Slv | 1 | $4.92 | Available to order | 1 |
| 19 | T3350123 Nut, Captive, M5, Non-Secured | Nut, Captive, M5, Non-Secured | 1 | $2.48 | Available to order | 1 |
