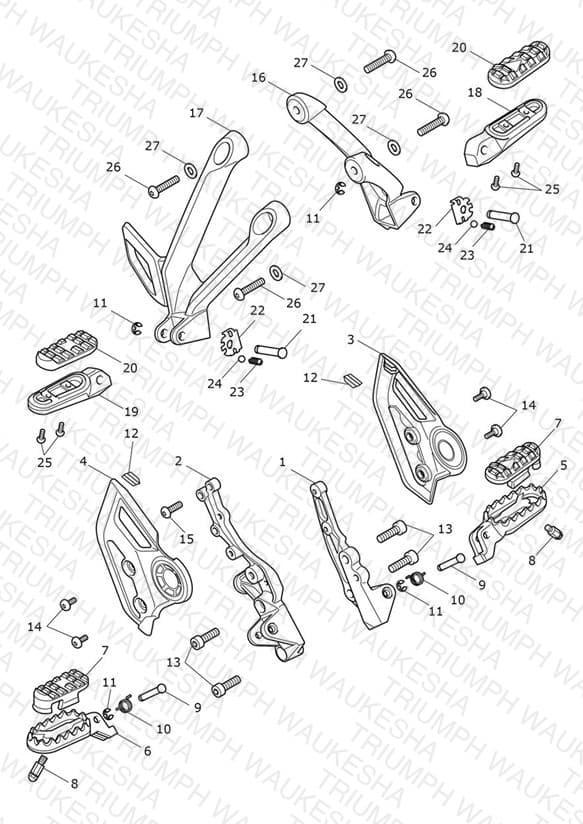

Foot Controls
Parts (27)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2082418 Control Plate, LH | Control Plate, LH | 1 | $130.44 | Backorder — Late September 2026 | 1 |
| 2 | T2082507 Control Plate, RH | Control Plate, RH | 1 | $130.44 | Available to order | 1 |
| 3 | T2083159 Heelguard, LH | Heelguard, LH | 1 | $113.69 | Available to order | 1 |
| 4 | T2083160 Heelguard, RH | Heelguard, RH | 1 | $113.69 | Available to order | 1 |
| 5 | T2083867 Footpeg, Rider, LH | Footpeg, Rider, LH | 1 | $77.96 | Available to order | 1 |
| 6 | T2083868 Footpeg, Rider, RH | Footpeg, Rider, RH | 1 | $77.96 | Available to order | 1 |
| 7 | T2081892 Footrest Rubber | Footrest Rubber | 2 | $13.99 | Available to order | 2 |
| 8 | T2085165 Peg, Bank Angle, 30mm | Peg, Bank Angle, 30mm > AG0141 | 2 | $13.77 | Available to order | 2 |
| 9 | T2080874 Pivot Pin, Footrest, 8.0 | Pivot Pin, Footrest, 8.0 AG0142 > | 2 | $9.10 | Available to order | 2 |
| 10 | T2089638 Return Spring, Footrest | Return Spring, Footrest | 2 | $6.94 | Available to order | 2 |
| 11 | T3500207 Circlip, Ext 8 X 0.89 | Circlip, Ext 8 X 0.89 | 4 | $2.85 | Available to order | 4 |
| 12 | T2303045 Rubber, Stand Off, Seat | Rubber, Stand Off, Seat | 2 | $3.59 | Available to order | 2 |
| 13 | T3050430 Screw, Cap/Hd, M10 x 30, Slv | Screw, Cap/Hd, M10 x 30, Slv | 4 | $4.64 | Available to order | 4 |
| 14 | T3331517 Screw, P/HD Tx, Shld, M6 x 16, S | Screw, P/HD Tx, Shld, M6 x 16, S | 4 | $0.97 | Available to order | 4 |
| 15 | T3335012 Screw, But/Hd, Skt, M8 x 25 | Screw, But/Hd, Skt, M8 x 25 | 1 | $8.33 | Available to order | 1 |
| 16 | T2089022 Footrest Hanger, LH, Black Anodised | Footrest Hanger, LH, Black Anodised | 1 | $106.25 | Unavailable | View Details |
| 17 | T2089023 Footrest Hanger, RH, Black Anodised | Footrest Hanger, RH, Black Anodised | 1 | $106.25 | Unavailable | View Details |
| 18 | T2083339 Footrest Rear, LH | Footrest Rear, LH | 1 | $86.50 | Available to order | 1 |
| 19 | T2082139 Footrest, Rear, RH | Footrest, Rear, RH | 1 | $84.61 | Available to order | 1 |
| 20 | T2082289 Footrest Rubber, Pillion | Footrest Rubber, Pillion | 2 | $13.61 | Available to order | 2 |
| 21 | T2080547 Pivot pin | Pivot pin | 2 | $6.55 | Available to order | 2 |
| 22 | T2081672 Detent Plate | Detent Plate | 2 | $5.30 | Available to order | 2 |
| 23 | T2081674 Spring, Detent | Spring, Detent | 2 | $6.39 | Available to order | 2 |
| 24 | T2081675 Detent Ball | Detent Ball | 2 | $1.91 | Available to order | 2 |
| 25 | T3330337 Screw, Pan/Hd, TX, M5 x 12, Enc | Screw, Pan/Hd, TX, M5 x 12, Enc | 4 | $2.19 | Available to order | 4 |
| 26 | T3335016 Screw, But/Hd, M8 x 35 | Screw, But/Hd, M8 x 35 | 4 | $7.02 | Available to order | 4 |
| 27 | T3550405 Washer, M8 x 17 x 1.6 | Washer, M8 x 17 x 1.6 | 4 | $0.89 | Available to order | 4 |
