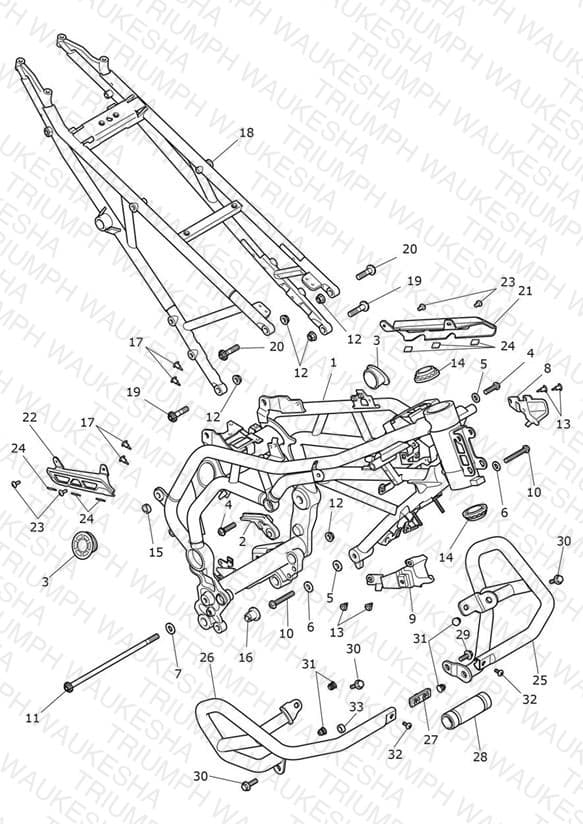

Frame & Subframe
Parts (39)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2074138 Main Frame Assembly, ROW | Main Frame Assembly, ROW | 1 | $2922.21 | Out of Stock | Notify Me |
| 1 | T2074142 Main Frame Assembly, AU | Main Frame Assembly, AU | 1 | $2922.21 | Out of Stock | Notify Me |
| 1 | T2074143 Main Frame Assembly, BR | Main Frame Assembly, BR | 1 | $2922.21 | Out of Stock | Notify Me |
| 1 | T2074144 Main Frame Assembly, CA | Main Frame Assembly, CA | 1 | $2922.21 | Out of Stock | Notify Me |
| 1 | T2074148 Main Frame Assembly, TH | Main Frame Assembly, TH | 1 | $2922.21 | Out of Stock | Notify Me |
| 1 | T2074149 Main Frame Assembly, US | Main Frame Assembly, US | 1 | $2922.21 | Out of Stock | Notify Me |
| 1 | T2074145 Main Frame Assembly, CN | Main Frame Assembly, CN | 1 | $2922.21 | Out of Stock | Notify Me |
| 2 | T2072769 Chain Rubbing Block | Chain Rubbing Block | 1 | $10.87 | Available to order | 1 |
| 3 | T2072770 Bung, OD59.3 | Bung, OD59.3 | 2 | $4.76 | Available to order | 2 |
| 4 | T3202099 Bolt, TX, M10 x 35, Slv | Bolt, TX, M10 x 35, Slv | 2 | $13.51 | Available to order | 2 |
| 5 | T2074159 Spacer Kit | Spacer Kit | 1 | $13.67 | Available to order | 1 |
| 6 | T3555009 Washer, 10.5 x 21 x 1.22 | Washer, 10.5 x 21 x 1.22 | 2 | $1.13 | Available to order | 2 |
| 7 | T3555029 Washer, 10.5 x 23 x 2 | Washer, 10.5 x 23 x 2 | 1 | $2.74 | Available to order | 1 |
| 8 | T2077815 Infill Headstock, LH | Infill Headstock, LH | 1 | $38.40 | Available to order | 1 |
| 9 | T2077825 Infill Headstock, RH | Infill Headstock, RH | 1 | $38.40 | Available to order | 1 |
| 10 | T3202098 Bolt, TX, M10 x 60, Slv | Bolt, TX, M10 x 60, Slv | 2 | $7.42 | Available to order | 2 |
| 11 | T3202110 Bolt, TX, M10 x 270 | Bolt, TX, M10 x 270 | 1 | $12.16 | Available to order | 1 |
| 12 | T3350250 Locknut, Flanged, M10 | Locknut, Flanged, M10 | 5 | $4.16 | Available to order | 5 |
| 13 | T3701150 Plastic Rivet, Push Release | Plastic Rivet, Push Release | 4 | $0.97 | Available to order | 4 |
| 14 | T3800091 Bearing, Sac | Bearing, Sac | 2 | $33.95 | Available to order | 2 |
| 15 | T2076548 Adjuster, Threaded | Adjuster, Threaded | 1 | $16.42 | Available to order | 1 |
| 16 | T2078991 Frame Adjuster, M18 | Frame Adjuster, M18 | 1 | $9.78 | Available to order | 1 |
| 17 | T3450295 Fir Tree, Dia 5.7 x 12.7 | Fir Tree, Dia 5.7 x 12.7 | 4 | $1.40 | Available to order | 4 |
| 18 | T2072208 Rear Subframe Assy, Crinkle Black | Rear Subframe Assy, Crinkle Black | 1 | $778.75 | Available to order | 1 |
| 19 | T3332675 Bolt, TX, M10 x 40 | Bolt, TX, M10 x 40 | 2 | $15.12 | Available to order | 2 |
| 20 | T3334411 Bolt, TX, M10 x 35 | Bolt, TX, M10 x 35 | 2 | $4.92 | Available to order | 2 |
| 21 | T2072591 Frame Guard, LH | Frame Guard, LH | 1 | $24.22 | Available to order | 1 |
| 22 | T2072581 Frame Guard, RH | Frame Guard, RH | 1 | $24.22 | Out of Stock | Notify Me |
| 23 | T3330943 Screw, But/Hd, M5 x 14, Slv | Screw, But/Hd, M5 x 14, Slv | 4 | $4.92 | Available to order | 4 |
| 24 | T3660029 Foam Tape | Foam Tape | 4 | $4.22 | Available to order | 4 |
| 25 | T2082768 Protection Bar, LH, Crinkle Black | Protection Bar, LH, Crinkle Black | 1 | $268.73 | Available to order | 1 |
| 26 | T2082769 Protection Bar, RH, Crinkle Black | Protection Bar, RH, Crinkle Black | 1 | $268.73 | Available to order | 1 |
| 27 | T2087624 Protection Bar, Centre | Protection Bar, Centre | 1 | $19.57 | Available to order | 1 |
| 28 | T2087643 Rubber Sleeve, Engine Bars | Rubber Sleeve, Engine Bars | 1 | $7.35 | Available to order | 1 |
| 29 | T3205254 Bolt, HHF, Lghtd, M8 x 20, Slv | Bolt, HHF, Lghtd, M8 x 20, Slv | 1 | $1.62 | Available to order | 1 |
| 30 | T3205781 Bolt, HHF, Lghtd, M8 x 1.25 x 25, Slv | Bolt, HHF, Lghtd, M8 x 1.25 x 25, Slv | 3 | $1.62 | Available to order | 3 |
| 31 | T3450675 Bung, Hole Dia 12, Black | Bung, Hole Dia 12, Black | 4 | $7.71 | Available to order | 4 |
| 32 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc | 2 | $1.40 | Available to order | 2 |
| 33 | T2087637 Spacer | Spacer | 1 | $7.56 | Available to order | 1 |
