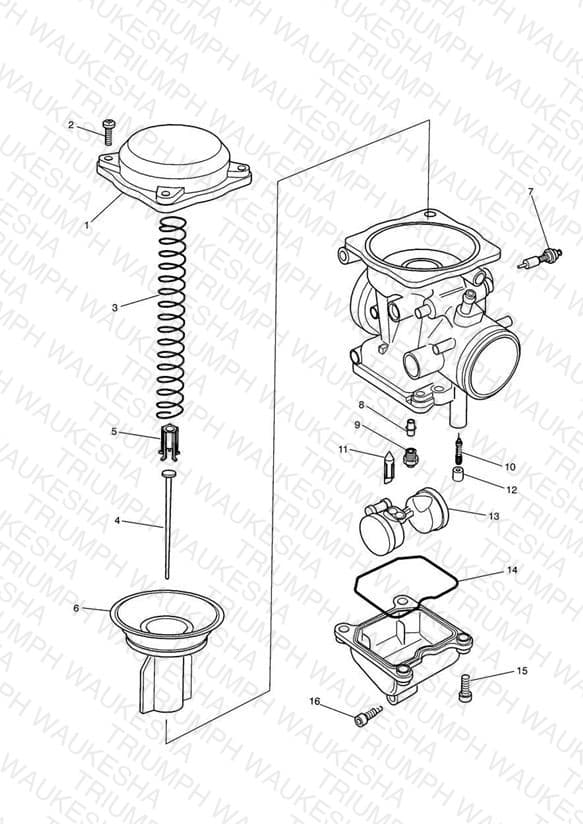

Carburettor Parts Carburettor assembly T1240670
Parts (16)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1241017 Cover | Cover | 3 | $22.82 | Available to order | 3 |
| 2 | T1241018 Screw | Screw | 11 | $1.62 | Available to order | 11 |
| 3 | T1241022 Piston spring | Piston spring | 3 | $10.06 | Available to order | 3 |
| 4 | T1241024 Needle jet n3rf | Needle jet n3rf N3RF | 3 | $11.88 | Available to order | 3 |
| 5 | T1241023 Seat, Piston Spring | Seat, Piston Spring | 3 | $11.12 | Available to order | 3 |
| 6 | T1241020 Piston | Piston 2.5mm Hole | 3 | $98.85 | Available to order | 3 |
| 7 | T1241031 Valve kit | Valve kit Choke | 3 | $24.47 | Available to order | 3 |
| 8 | T1241025 Needle jet | Needle jet | 3 | $13.45 | Available to order | 3 |
| 9 | T1241028 Main jet 98 | Main jet 98 | 3 | $12.83 | Available to order | 3 |
| 10 | T1241030 Kit screw | Kit screw | 3 | $45.62 | Available to order | 3 |
| 11 | T1241077 Kit, Float Valve | Kit, Float Valve | 3 | $34.11 | Available to order | 3 |
| 12 | T1240955 Plug, Pilot Screw | Plug, Pilot Screw US All Vins - SG » 110499 | 3 | $3.17 | Available to order | 3 |
| 13 | T1241078 Kit, Float | Kit, Float | 3 | $74.12 | Available to order | 3 |
| 14 | T1241036 Seal, Float Bowl | Seal, Float Bowl | 3 | $11.41 | Available to order | 3 |
| 15 | T1241035 Screw, Float Bowl | Screw, Float Bowl | 12 | $1.62 | Available to order | 12 |
| 16 | T1241034 Screw, Float Chamber Drain | Screw, Float Chamber Drain | 3 | $4.92 | Available to order | 3 |
