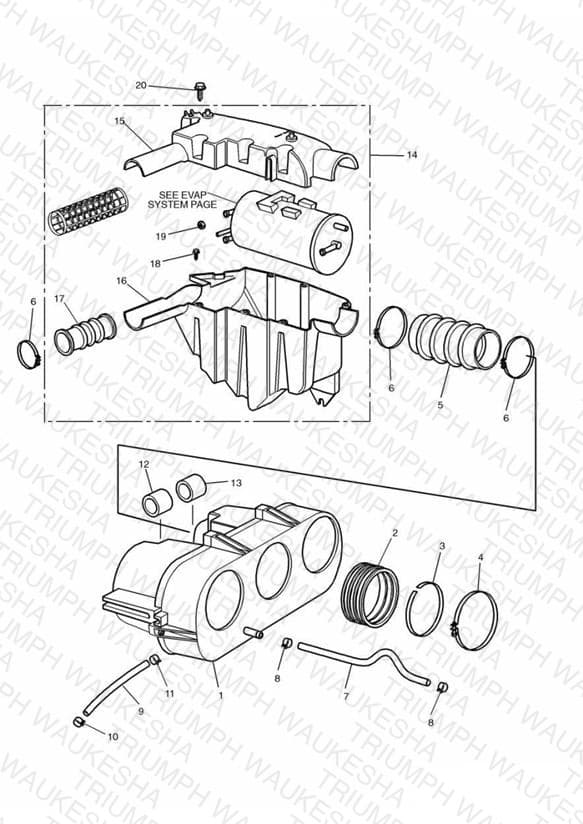

Airbox
Parts (21)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2201200 Airbox assembly | Airbox assembly | 1 | $186.62 | Available to order | 1 |
| 2 | T2200001 Venturi | Venturi | 3 | $10.55 | Available to order | 3 |
| 3 | T2200214 Retainer ring | Retainer ring | 3 | $25.85 | Available to order | 3 |
| 4 | T3700041 Clip, Intake, Venturi, 60mm, Cap | Clip, Intake, Venturi, 60mm, Cap | 3 | $7.87 | Available to order | 3 |
| 5 | T2201204 Air duct | Air duct ** Part No Longer Available ** | 1 | $6.42 | Obsolete | View Details |
| 6 | T3700073 Clip, Throttle Body to Rubber | Clip, Throttle Body to Rubber | 3 | $12.04 | Backorder — Late August 2026 | 3 |
| 7 | T2200312 Breather pipe | Breather pipe | 1 | $9.88 | Available to order | 1 |
| 8 | T3700035 Clip, Hose, Dia 13.5-15.0 | Clip, Hose, Dia 13.5-15.0 | 2 | $0.75 | Available to order | 2 |
| 9 | 3620240-T0301 Hose drain | Hose drain | 1 | $11.79 | Available to order | 1 |
| 10 | T3450145 End Tip | End Tip | 1 | $1.21 | Available to order | 1 |
| 11 | T3700030 Clip pipe | Clip pipe | 1 | $0.97 | Available to order | 1 |
| 12 | T2201207 Bush | Bush RH | 1 | $2.38 | Obsolete | View Details |
| 13 | T2201208 Bush | Bush PART NO LONGER AVAILABLE | 1 | $2.38 | Obsolete | View Details |
| 14 | T2201220 Chamber assembly | Chamber assembly | 1 | $97.76 | Obsolete | View Details |
| 14 | T2201225 Chamber assembly | Chamber assembly US Cal (Inc Carbon Cannister) | 1 | $371.58 | Obsolete | View Details |
| 15 | T2201221 Chamber | Chamber Upper | 1 | $56.30 | Obsolete | View Details |
| 16 | T2201222 Chamber | Chamber Lower | 1 | $56.55 | Obsolete | View Details |
| 17 | T2201224 Inlet silencer | Inlet silencer | 1 | $8.18 | Available to order | 1 |
| 18 | T3331414 Screw, S/Tap, Tx, 5 x 16 | Screw, S/Tap, Tx, 5 x 16 | 7 | $1.51 | Available to order | 7 |
| 19 | T3350300 Nut, M6 x 1.0, Slv | Nut, M6 x 1.0, Slv US CAL | 2 | $0.94 | Available to order | 2 |
| 20 | T3331040 Screw, TPT, Pan/Hd, M6 x 12, Slv | Screw, TPT, Pan/Hd, M6 x 12, Slv | 1 | $2.37 | Available to order | 1 |
