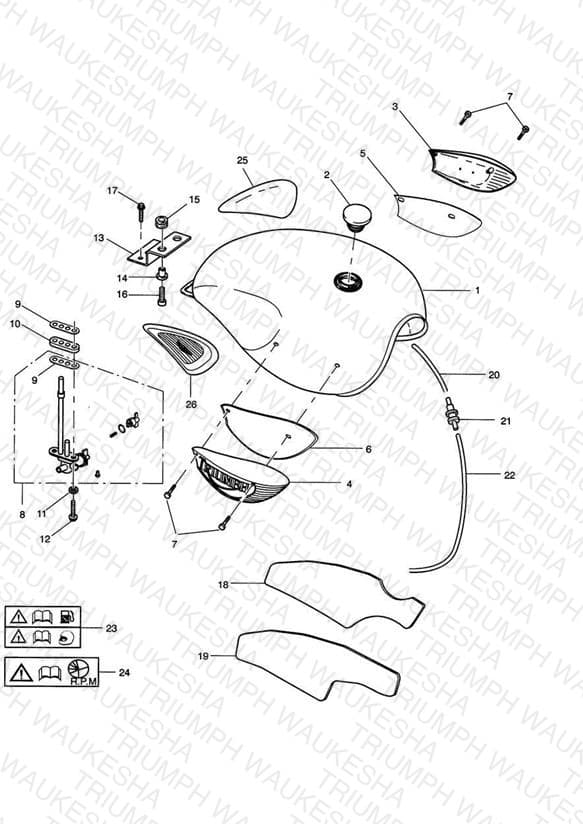

Fuel Tank and Fittings
Parts (27)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2401406-PG Fuel tank | Fuel tank » 89736; Jet Black / Silver; Includes heat pads, items 18 & 19 | 1 | $1431.70 | Obsolete | View Details |
| 1 | T2401430-ED Fuel tank | Fuel tank 89737 » Jet Black / Lucifer Orange; Includes heat pads, items 18 & 19 | 1 | $1280.49 | Obsolete | View Details |
| 2 | T2400597 Fuel Filler Cap, Screw Type | Fuel Filler Cap, Screw Type | 1 | $106.19 | Available to order | 1 |
| 3 | T3900066 Badge, Tank, LH, Type B | Badge, Tank, LH, Type B LH | 1 | $85.85 | Available to order | 1 |
| 4 | T3900067 Badge, Tank, RH, Type B | Badge, Tank, RH, Type B RH | 1 | $85.85 | Available to order | 1 |
| 5 | T3660128 Gasket, Tank Badge, LH | Gasket, Tank Badge, LH LH | 1 | $11.64 | Available to order | 1 |
| 6 | T3660129 Gasket, Tank Badge, RH | Gasket, Tank Badge, RH RH | 1 | $11.64 | Available to order | 1 |
| 7 | T3330529 Screw, Raised C'sunk, Trx | Screw, Raised C'sunk, Trx M5 x 16mm | 4 | $6.54 | Available to order | 4 |
| 8 | T2400150 Fuel Tap Assy, T309RT | Fuel Tap Assy, T309RT | 1 | $118.98 | Available to order | 1 |
| 9 | 2400086-T0301 Seal, Fuel Tap (EN) | Seal, Fuel Tap (EN) | 2 | $4.38 | Available to order | 2 |
| 10 | T2400151 Spacer, Fuel Tap Assy, T309RT | Spacer, Fuel Tap Assy, T309RT * PART NO LONGER AVAILABLE * | 1 | $41.06 | Obsolete | View Details |
| 11 | 3550150-T0301 Washer, Sealing, 11.5x6.4x0.64 | Washer, Sealing, 11.5x6.4x0.64 | 2 | $1.56 | Available to order | 2 |
| 12 | T3331102 Bolt, HHF, M6 X 25, S/S | Bolt, HHF, M6 X 25, S/S * PART NO LONGER AVAILABLE * | 2 | $2.00 | Obsolete | View Details |
| 13 | T2070712 Bridge bracket | Bridge bracket | 1 | $12.38 | Obsolete | View Details |
| 14 | T3010042 Flanged Sleeve, M6 x 10 x 18 | Flanged Sleeve, M6 x 10 x 18 | 2 | $1.91 | Available to order | 2 |
| 15 | T2400602 Grommet, Long, Tank Rear Mount | Grommet, Long, Tank Rear Mount | 2 | $2.24 | Available to order | 2 |
| 16 | T3205083 Bolt, HHF, LGHTD, M6 x 28, Slv | Bolt, HHF, LGHTD, M6 x 28, Slv | 2 | $2.63 | Available to order | 2 |
| 17 | T3203222 Bolt, HHF, M6 x 12, Slv | Bolt, HHF, M6 x 12, Slv | 2 | $1.84 | Available to order | 2 |
| 18 | T2301033 Heat shield | Heat shield LH | 1 | $56.54 | Available to order | 1 |
| 19 | T2301034 Heat shield | Heat shield RH | 1 | $27.42 | Obsolete | View Details |
| 20 | T3620285 Pipe breather | Pipe breather » 82479 | 1 | $4.01 | Available to order | 1 |
| 21 | T2400045 Valve, Roll Over | Valve, Roll Over | 1 | $36.67 | Unavailable | View Details |
| 22 | T3620278 Hose | Hose Lower | 1 | $9.60 | Available to order | 1 |
| 23 | T3900194 Label, Fuel Tank, White Text | Label, Fuel Tank, White Text | 1 | $6.06 | Available to order | 1 |
| 24 | T3900154 Label, Running In, White Text | Label, Running In, White Text | 1 | $3.04 | Available to order | 1 |
| 25 | T2300302 Pad rubber | Pad rubber LH | 1 | $17.64 | Obsolete | View Details |
| 26 | T2300303 Pad rubber | Pad rubber RH | 1 | $32.16 | Obsolete | View Details |
