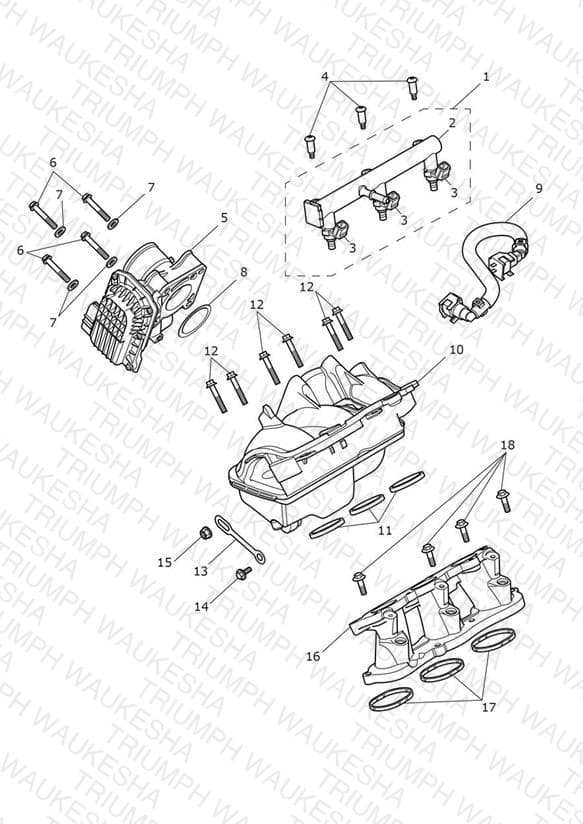

Throttle Bodies
Parts (18)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1246400 Fuel Rail Assembly | Fuel Rail Assembly | 1 | $268.80 | Out of Stock | Notify Me |
| 2 | T1243403 Pipe Set, Fuel | Pipe Set, Fuel | 1 | $218.63 | Available to order | 1 |
| 3 | T1243401 Fuel Injector Assy | Fuel Injector Assy | 3 | $228.13 | Available to order | 3 |
| 4 | T1240471 Screw, Fuel Rail | Screw, Fuel Rail | 3 | $4.85 | Available to order | 3 |
| 5 | T1243320 Throttle Body Assembly, Single | Throttle Body Assembly, Single | 1 | $466.48 | Available to order | 1 |
| 6 | T3205072 Bolt, HHF, Lghtd, M6 x 40, Slv | Bolt, HHF, Lghtd, M6 x 40, Slv | 4 | $1.72 | Available to order | 4 |
| 7 | T3555004 Washer, 6.4 x 14 x 1.6 | Washer, 6.4 x 14 x 1.6 | 4 | $1.40 | Available to order | 4 |
| 8 | T1241996 Intake Seal | Intake Seal | 1 | $6.94 | Available to order | 1 |
| 9 | T1243990 Fuel Hose Assembly | Fuel Hose Assembly | 1 | $125.53 | Available to order | 1 |
| 10 | T1247001 Intake, Manifold, Moulding | Intake, Manifold, Moulding | 1 | $279.87 | Unavailable | View Details |
| 11 | T1242660 Intake Seal | Intake Seal | 3 | $1.67 | Available to order | 3 |
| 12 | T3200180 Bolt, RHHF, M6 x 35, Slv, Enc | Bolt, RHHF, M6 x 35, Slv, Enc | 6 | $5.12 | Available to order | 6 |
| 13 | T1247044 Tiebar, Manifold, Lower | Tiebar, Manifold, Lower | 1 | $1.47 | Available to order | 1 |
| 14 | T3203222 Bolt, HHF, M6 x 12, Slv | Bolt, HHF, M6 x 12, Slv | 1 | $1.72 | Available to order | 1 |
| 15 | T3350305 Locknut, Flgd, M6 x 1.0, Slv | Locknut, Flgd, M6 x 1.0, Slv | 1 | $1.91 | Available to order | 1 |
| 16 | T1246966 Intake Manifold, Cast | Intake Manifold, Cast | 1 | $205.93 | Backorder — Mid August 2026 | 1 |
| 17 | T1242078 Seal, Intake Manifold | Seal, Intake Manifold | 3 | $6.67 | Available to order | 3 |
| 18 | T3202304 Bolt, RHHF, M6 x 20, Slv | Bolt, RHHF, M6 x 20, Slv | 4 | $5.30 | Available to order | 4 |
