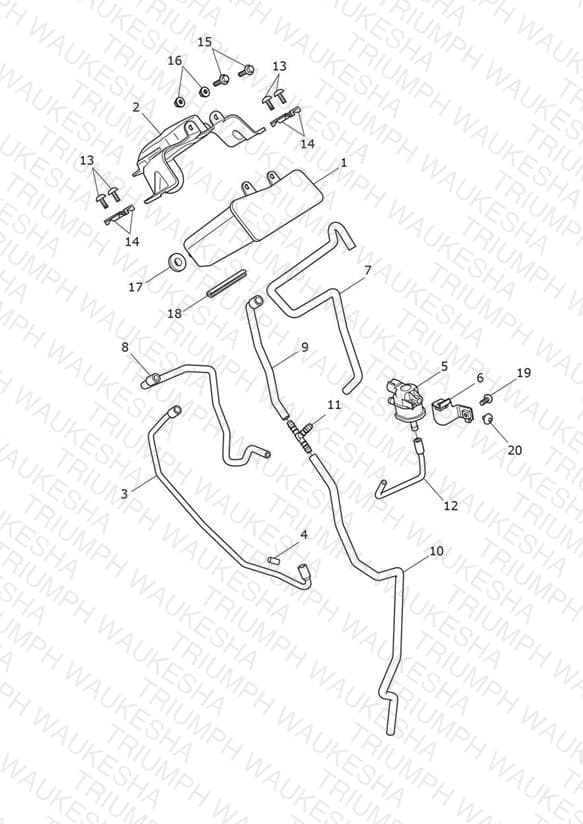

Evap System
Parts (20)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2403030 Carbon Cannister | Carbon Cannister | 1 | $115.33 | Available to order | 1 |
| 2 | T2402680 Bracket, Evap, Mldg | Bracket, Evap, Mldg | 1 | $23.82 | Out of Stock | Notify Me |
| 3 | T2403179 Hose, Tank to Evap | Hose, Tank to Evap | 1 | $19.53 | Available to order | 1 |
| 4 | T1241890 Restrictor, Purge, Evap | Restrictor, Purge, Evap | 1 | $11.75 | Available to order | 1 |
| 5 | T1248990 Purge Valve | Purge Valve | 1 | $65.30 | Available to order | 1 |
| 6 | T2402979 Pressing, Brkt, Purge Valve | Pressing, Brkt, Purge Valve | 1 | $10.58 | Out of Stock | Notify Me |
| 7 | T2403178 Hose, Evap Drain, Vent | Hose, Evap Drain, Vent | 1 | $39.25 | Available to order | 1 |
| 8 | T2402636 Hose, Evap to Purge | Hose, Evap to Purge | 1 | $28.50 | Available to order | 1 |
| 9 | T2403176 Hose, Evap Drain, Upper | Hose, Evap Drain, Upper | 1 | $15.84 | Available to order | 1 |
| 10 | T2409191 Hose, Evap Drain, Lower | Hose, Evap Drain, Lower | 1 | $34.27 | Out of Stock | Notify Me |
| 11 | T2405055 T-Piece, 5mm, Int Dia | T-Piece, 5mm, Int Dia | 1 | $17.19 | Available to order | 1 |
| 12 | T2406924 Hose, Purge to Manifold | Hose, Purge to Manifold | 1 | $24.93 | Available to order | 1 |
| 13 | T3330943 Screw, But/Hd, M5 x 14, Slv | Screw, But/Hd, M5 x 14, Slv | 4 | $5.24 | Available to order | 4 |
| 14 | T3350123 Nut, Captive, M5, Non-Secured | Nut, Captive, M5, Non-Secured | 4 | $2.63 | Available to order | 4 |
| 15 | T3202304 Bolt, RHHF, M6 x 20, Slv | Bolt, RHHF, M6 x 20, Slv | 2 | $5.65 | Available to order | 2 |
| 16 | T3350067 Nut, Flanged, M6 | Nut, Flanged, M6 | 2 | $1.50 | Available to order | 2 |
| 17 | T3020135 Rubber Grommet | Rubber Grommet | 1 | $2.04 | Available to order | 1 |
| 18 | T2502698 Edge Protector, Headstock | Edge Protector, Headstock | 1 | $9.86 | Backorder — Mid October 2026 | 1 |
| 19 | T3331043 Screw, Pan/Hd, Tx, M6 x 12, Slv | Screw, Pan/Hd, Tx, M6 x 12, Slv | 1 | $1.04 | Available to order | 1 |
| 20 | T3332568 Screw, But/HD, M5 x 8, Slv | Screw, But/HD, M5 x 8, Slv | 1 | $4.15 | Available to order | 1 |
