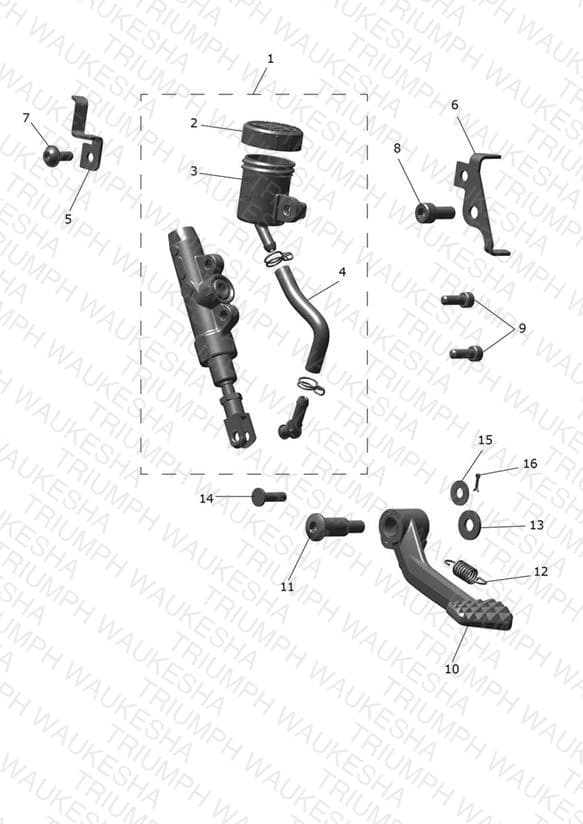

Rear Master Cylinder
Parts (18)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | TA131847 Rear Master Cylinder Assembly | Rear Master Cylinder Assembly | 1 | $192.81 | Backorder — Late September 2026 | 1 |
| 2 | YTA02023 Rear Reservoir Cap | Rear Reservoir Cap | 1 | $5.91 | Available to order | 1 |
| 3 | YTA02021 Rear Reservoir | Rear Reservoir | 1 | $26.59 | Out of Stock | Notify Me |
| 4 | 36TA0192 Rubber Tube Kit | Rubber Tube Kit | 1 | $3.25 | Out of Stock | Notify Me |
| 5 | TA131812 Reservoir Bracket | Reservoir Bracket | 1 | $2.67 | Out of Stock | Notify Me |
| 6 | TA131859 Bracket, Rear Reservoir | Bracket, Rear Reservoir | 1 | $1.80 | Out of Stock | Notify Me |
| 7 | LBU00239 Screw | Screw | 1 | $0.56 | Out of Stock | Notify Me |
| 8 | KACA0820 Bolt, Socket, M8 x 1.25 | Bolt, Socket, M8 x 1.25 | 1 | $0.60 | Backorder — Early September 2026 | 1 |
| 9 | LAC00115 Bolt, Socket, M6 x 1 x 18, Blk, Precoat | Bolt, Socket, M6 x 1 x 18, Blk, Precoat | 2 | $0.46 | Available to order | 2 |
| 10 | TA131870 Brake Pedal | Brake Pedal | 1 | $102.12 | Available to order | 1 |
| 11 | LBU00236 Screw Skt Step M8 x 1.25 | Screw Skt Step M8 x 1.25 | 1 | $3.56 | Available to order | 1 |
| 12 | JG161001 Tension Spring | Tension Spring | 1 | $0.66 | Available to order | 1 |
| 13 | LDB00151 Plain Washer | Plain Washer | 1 | $1.58 | Available to order | 1 |
| 14 | LHE00021 Clevis Pin, Dia 6 | Clevis Pin, Dia 6 | 1 | $0.79 | Available to order | 1 |
| 15 | 39178924 Nylon Washer | Nylon Washer | 1 | $0.10 | Available to order | 1 |
| 16 | KHAA2015 Pin Cotter | Pin Cotter | 1 | $0.10 | Available to order | 1 |
| 17 | 36TA0120 Kit, Rear Reservoir | Kit, Rear Reservoir | 1 | $32.93 | Out of Stock | Notify Me |
| 18 | 36JP0161 Major Kit, Master Cylinder | Major Kit, Master Cylinder | 1 | $56.04 | Available to order | 1 |
