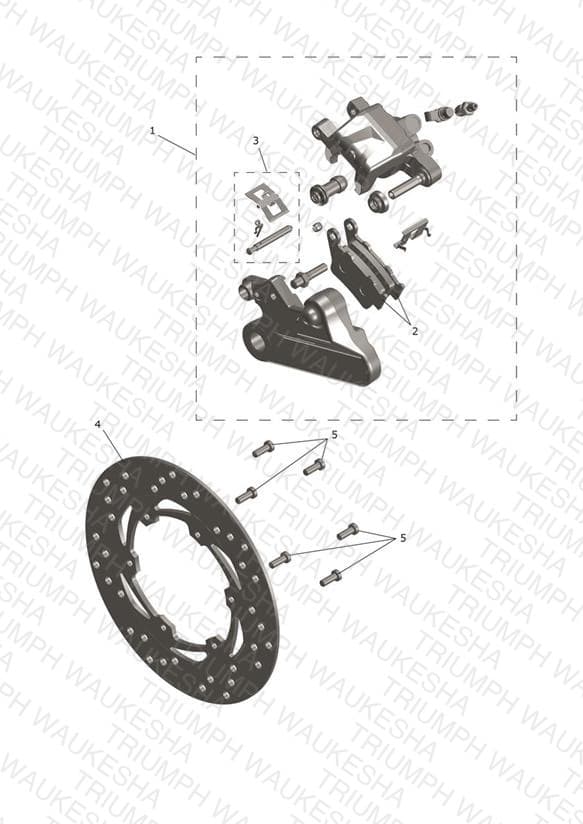

Rear Caliper & Disc
Parts (7)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | TA131805 Rear Caliper Assembly | Rear Caliper Assembly | 1 | $438.15 | Available to order | 1 |
| 2 | TA131887 Rear Brake Pad Set | Rear Brake Pad Set | 1 | $38.02 | Available to order | 1 |
| 3 | 36TA0150 Rear Caliper Spring, Pin Kit | Rear Caliper Spring, Pin Kit | 1 | $43.10 | Available to order | 1 |
| 4 | JF131861 Rear Disc, Dia 230 | Rear Disc, Dia 230 | 1 | $167.25 | Available to order | 1 |
| 5 | DH151040 Bolt, Socket, M6 x 1 | Bolt, Socket, M6 x 1 | 6 | $0.46 | Available to order | 6 |
| 6 | 36TA0113 Major Kit, Caliper Assy | Major Kit, Caliper Assy Contains: Bleeder Screw, Scraper Ring, Seal, Piston, Bleeder Cap, Insulator, Dust Cover & Grease Pouch | 1 | $30.19 | Out of Stock | Notify Me |
| 7 | 36TA0114 Minor Kit, Caliper Assy | Minor Kit, Caliper Assy Contains: Bleeder Screw, Scraper Ring, Seal, Bleeder Cap, Insulator, Dust Cover & Grease Pouch | 1 | $21.56 | Available to order | 1 |
